Schwab UP 192

Original replacement articles, manufacturer drawing and matching technical documents. Confirm your model and installation generation before selecting a replacement.

Matching documents

Explore the assembly.

Select a position on the drawing, or find your article below.

13 listed components
Explore flush plate designs & finishes →

Pinch or scroll to zoom · Drag to pan

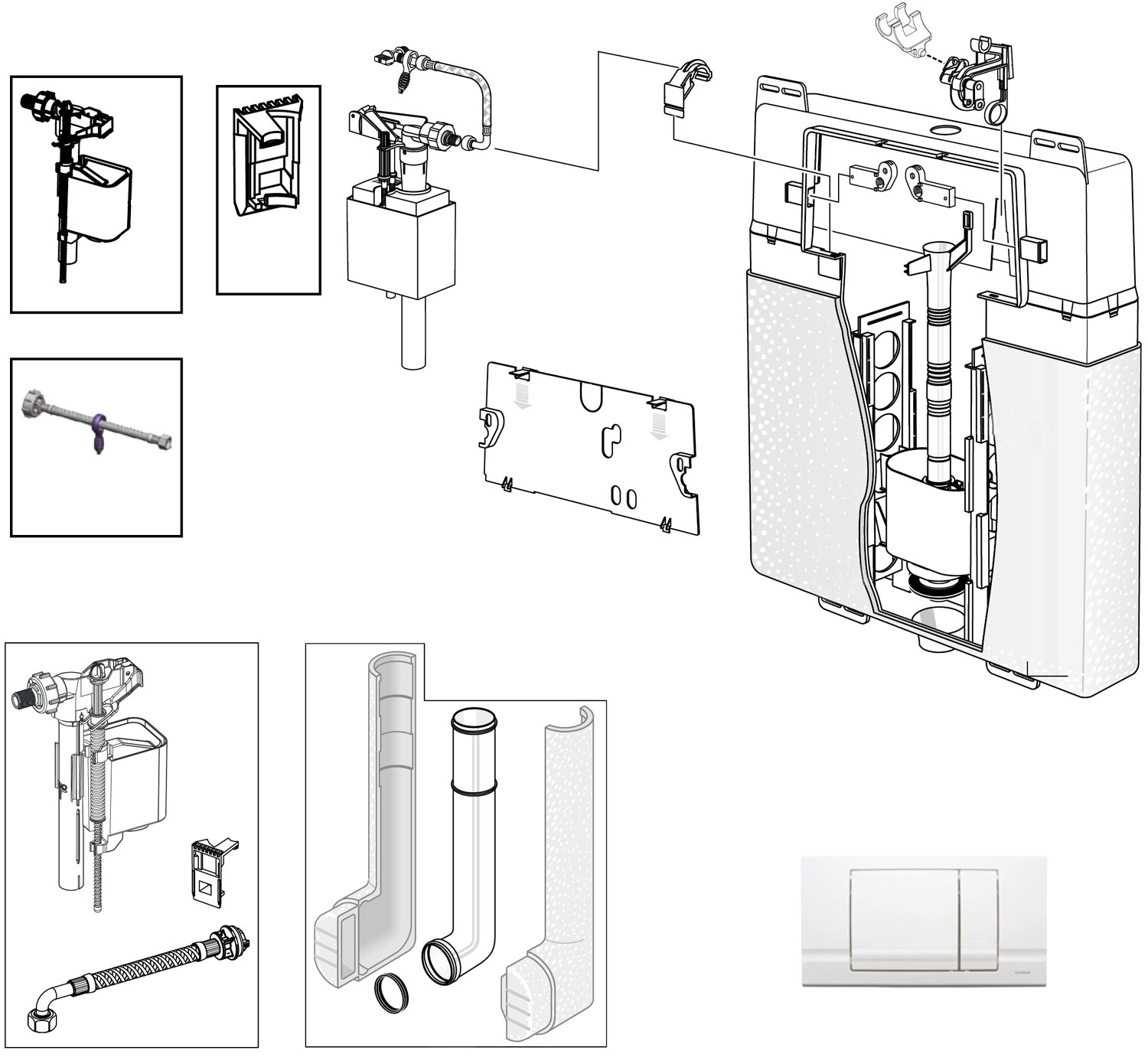

Schwab UP 192 manufacturer exploded parts diagram

Drawing positions

Schwab UP 192 / flush plates

Choose the design. Then the finish.

Match the plate mechanism and installation generation before ordering. Historical references do not establish current availability.

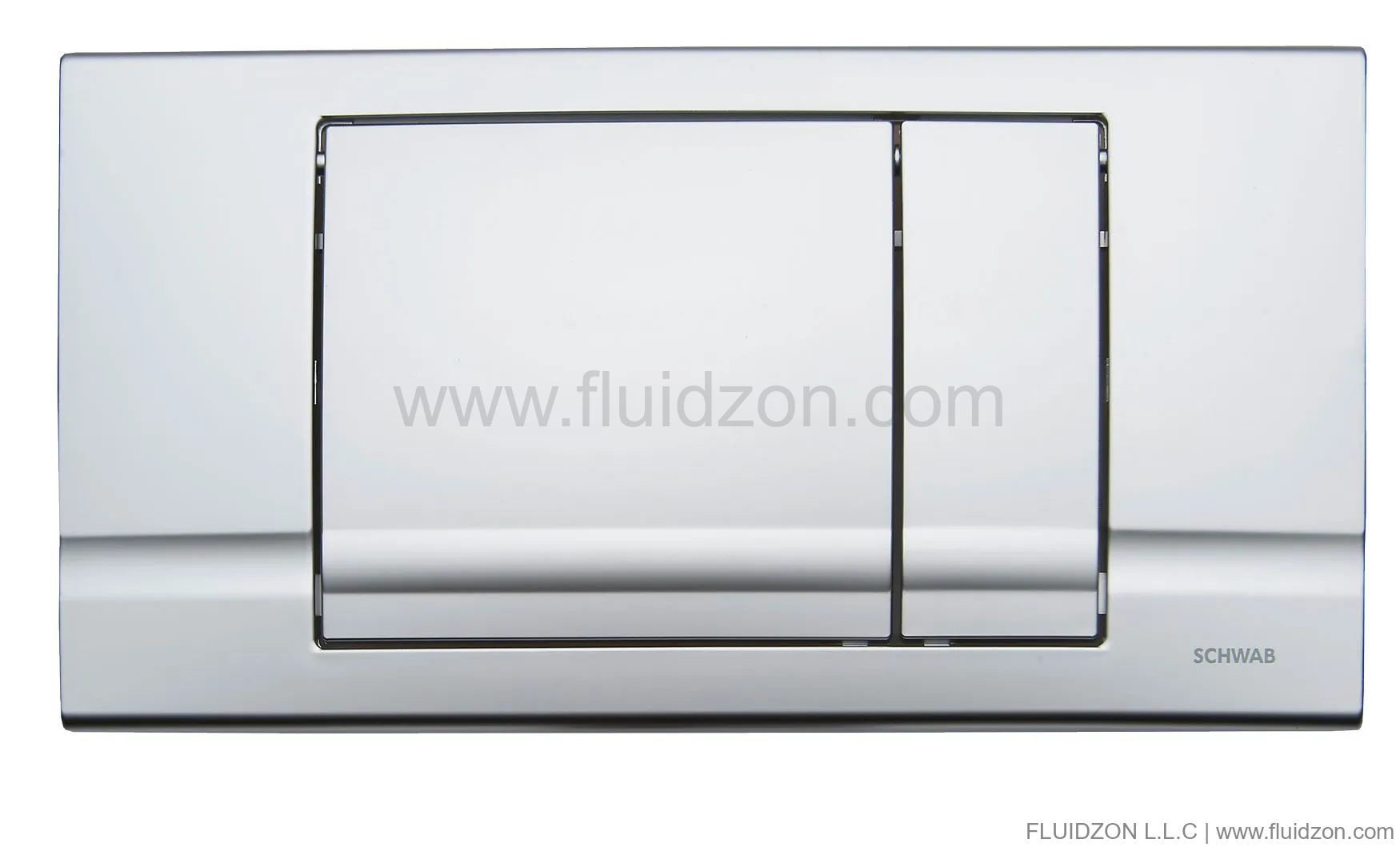

RIVA DUO, Matt chrome, 227678

2. Finish

227678
  • Matt chrome
  • Plastic
  • dual flush
  • mechanical

RIVA DUO · Matt chrome

Dimensions
320 x 170 x 20 mm (published Length x Width x Height)
Material
Plastic
Operation
dual flush
Mechanism
mechanical
Actuation
front
EAN
3838912030429

Confirm fit before ordering: Schwab lists this plate in the 192 category, but its individual product description specifies Schwab 182. UP192 compatibility remains unconfirmed.

Generation & required hardware

192.0400 since 2003; dual flush or start-stop. Fill-valve revision 02/2014 is not a documented plate revision.

Existing A2 cover 239337; I5 bearing bracket 239963 with setting lever and dual-flush adapter. Catalogue does not state a separately purchased conversion kit. Confirm assembly on site.

Current shared article listed on manufacturer UP192 page; do not claim it replaces archived UP192-specific article without confirmation.

Enquire about this plate ↗
RIVA DUO — Technical drawing ↗RIVA DUO — Installation instructions ↗Manufacturer compatibility reference ↗

Schwab UP 192 / replacement articles

Every part, in view.

13 of 13 components

1

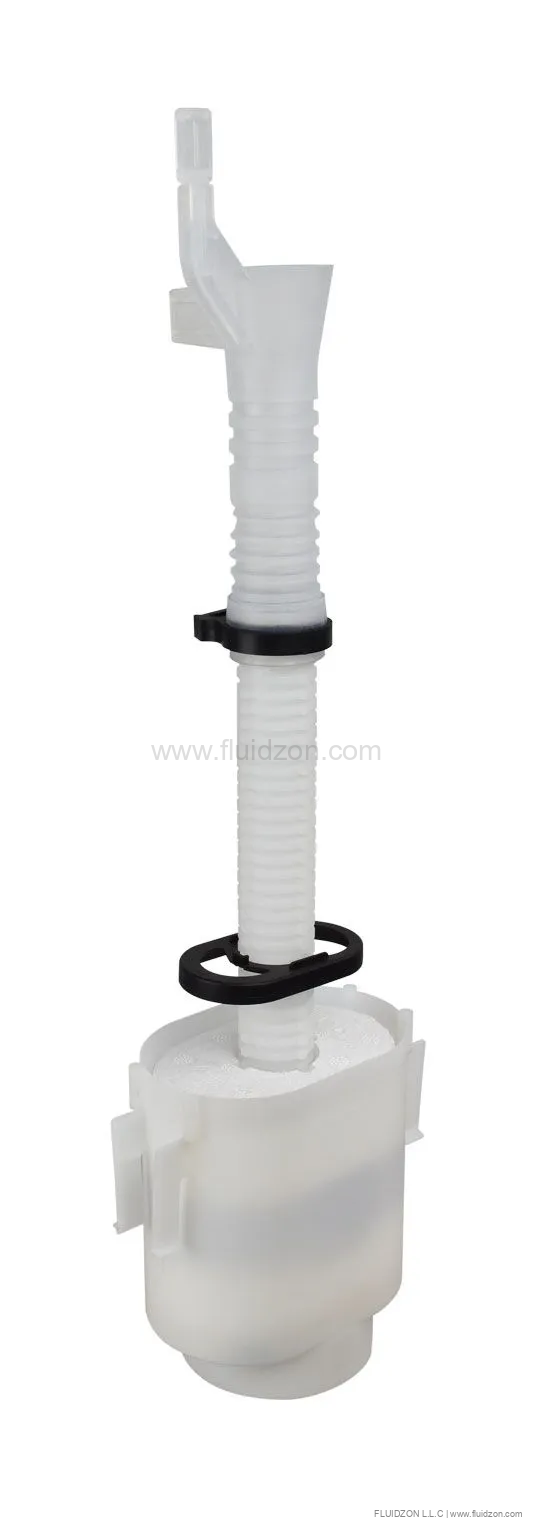

Flush valve with gasket, cisterns 190, 192
239336
2

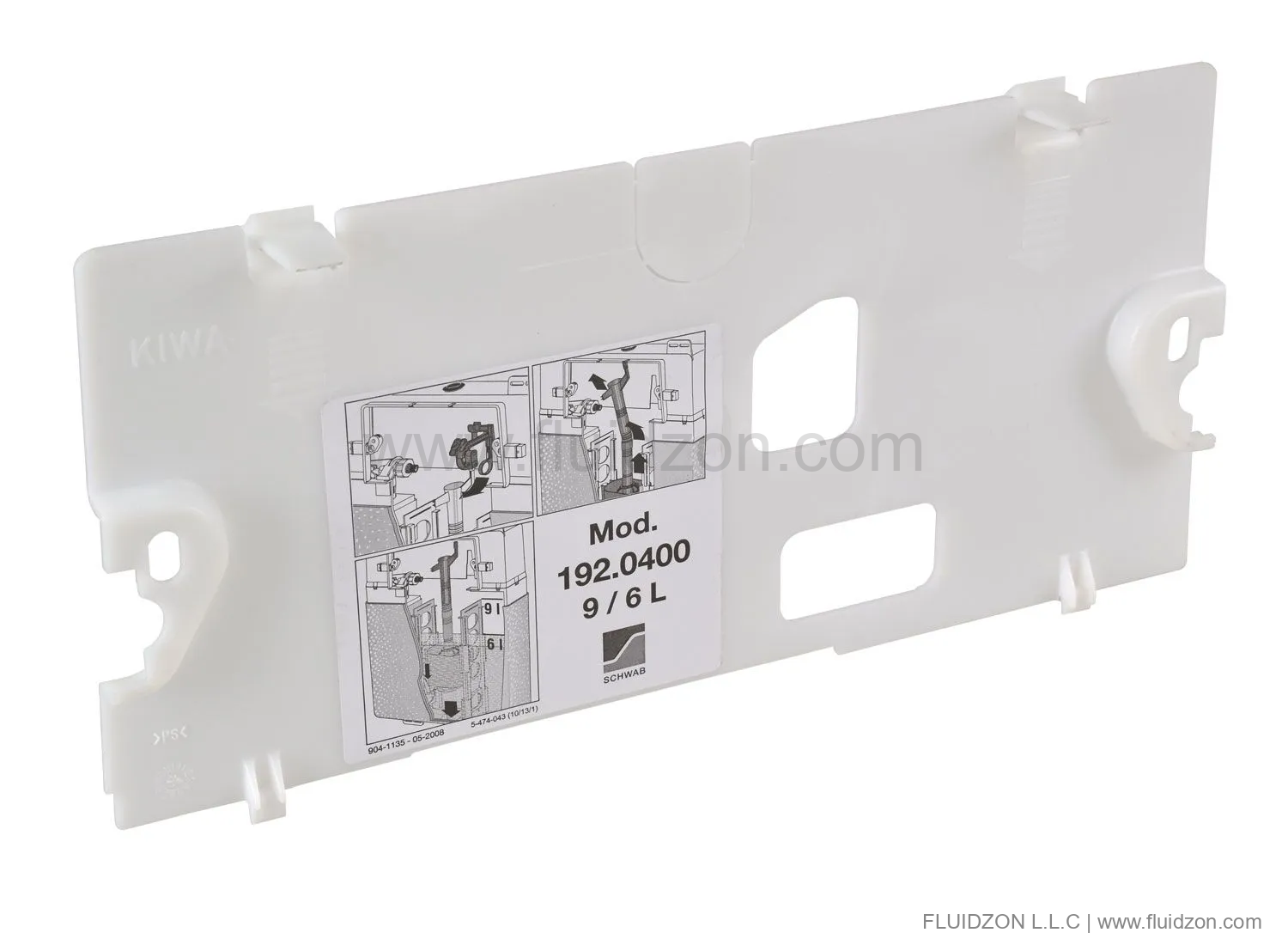

Front protection cover, cisterns 190, 192
239337
3

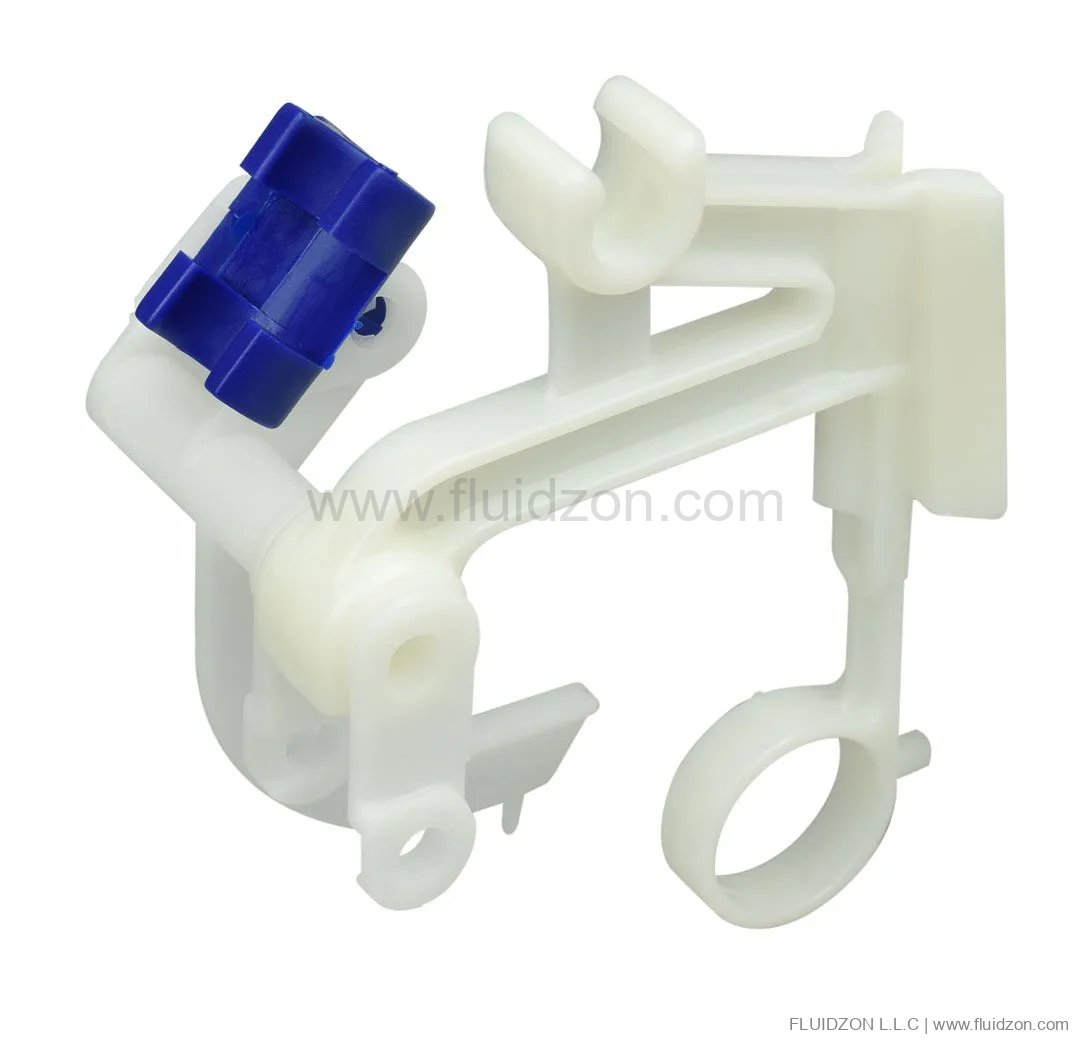

Holder, cistern 192
239963
6
Flange gasket for flush valve
351517
7
Gasket for flush pipe
352277
8
Holder
363802
9

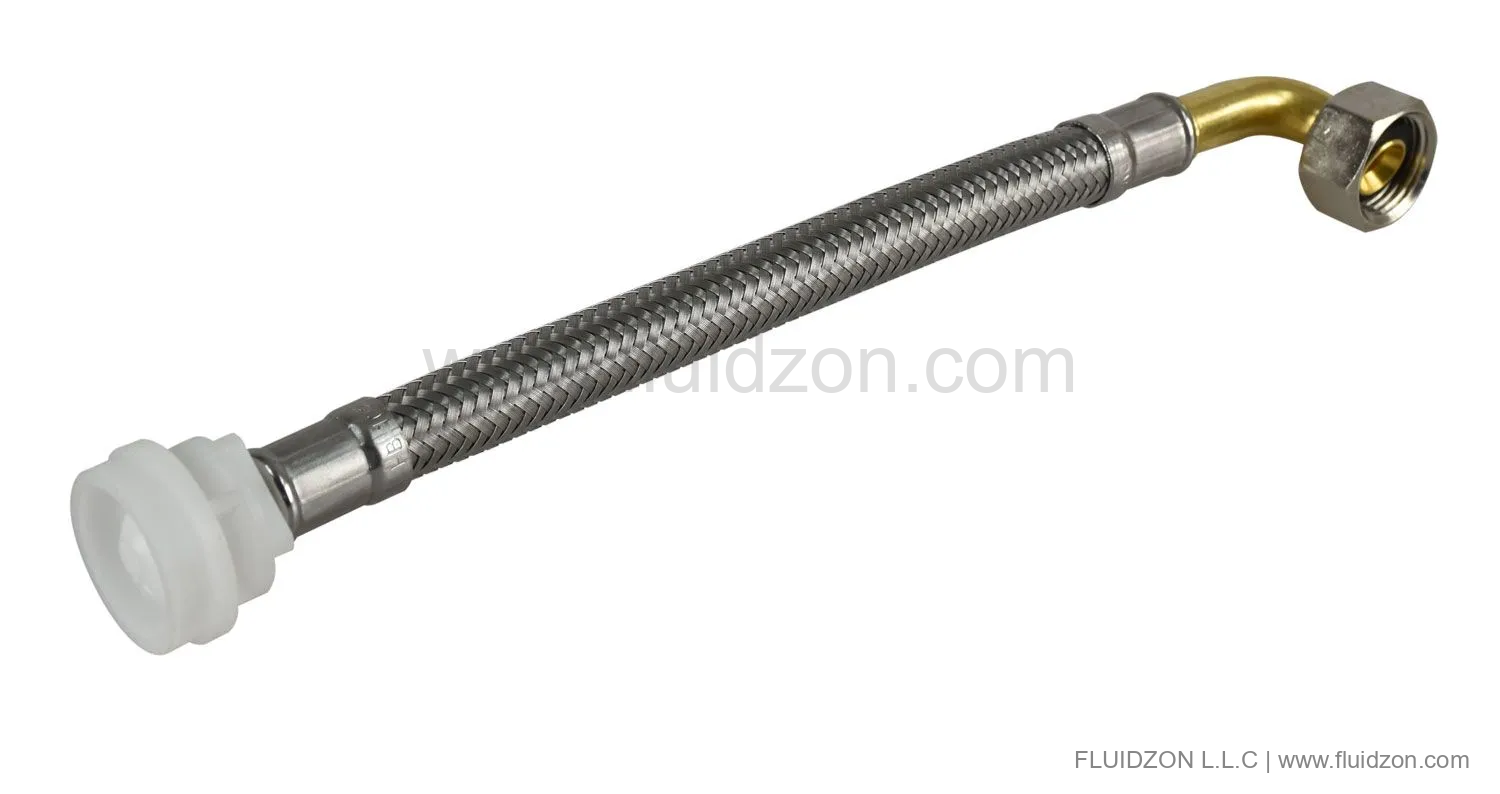

Connecting tube without stop valve (up to 02/2014)
363814
10

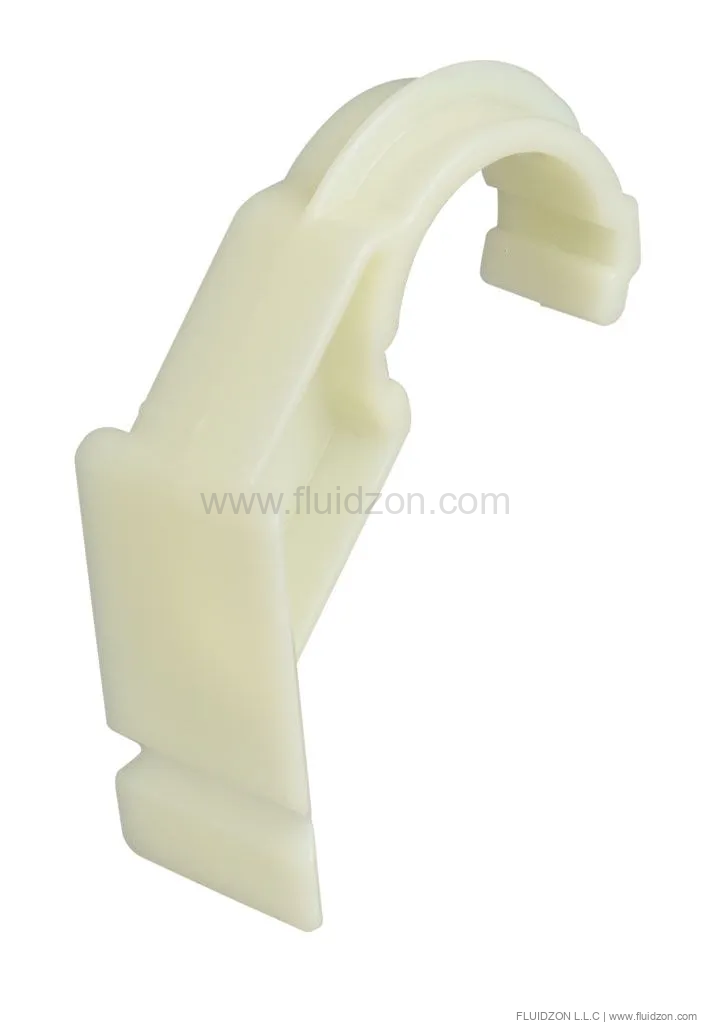

Fill valve holder, cisterns 190, 192
363823
11
Fill valve HDV G 3/8 brass
628458
12

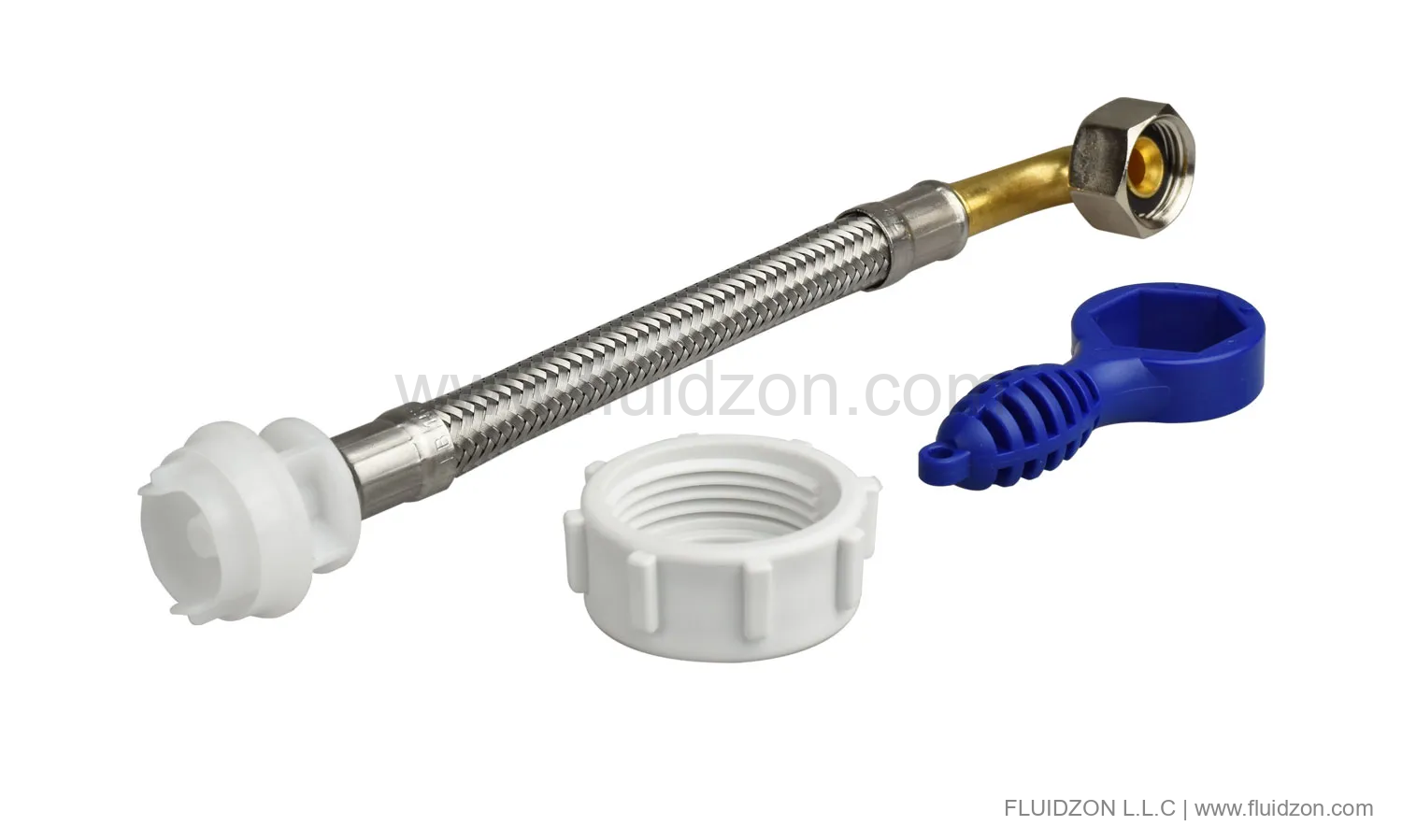

Connecting tube without stop valve (from 02/2014)
628460
13
Fill valve holder
632569
14
Component photo unavailableFlush pipe elbow
GR-S113-0250
15

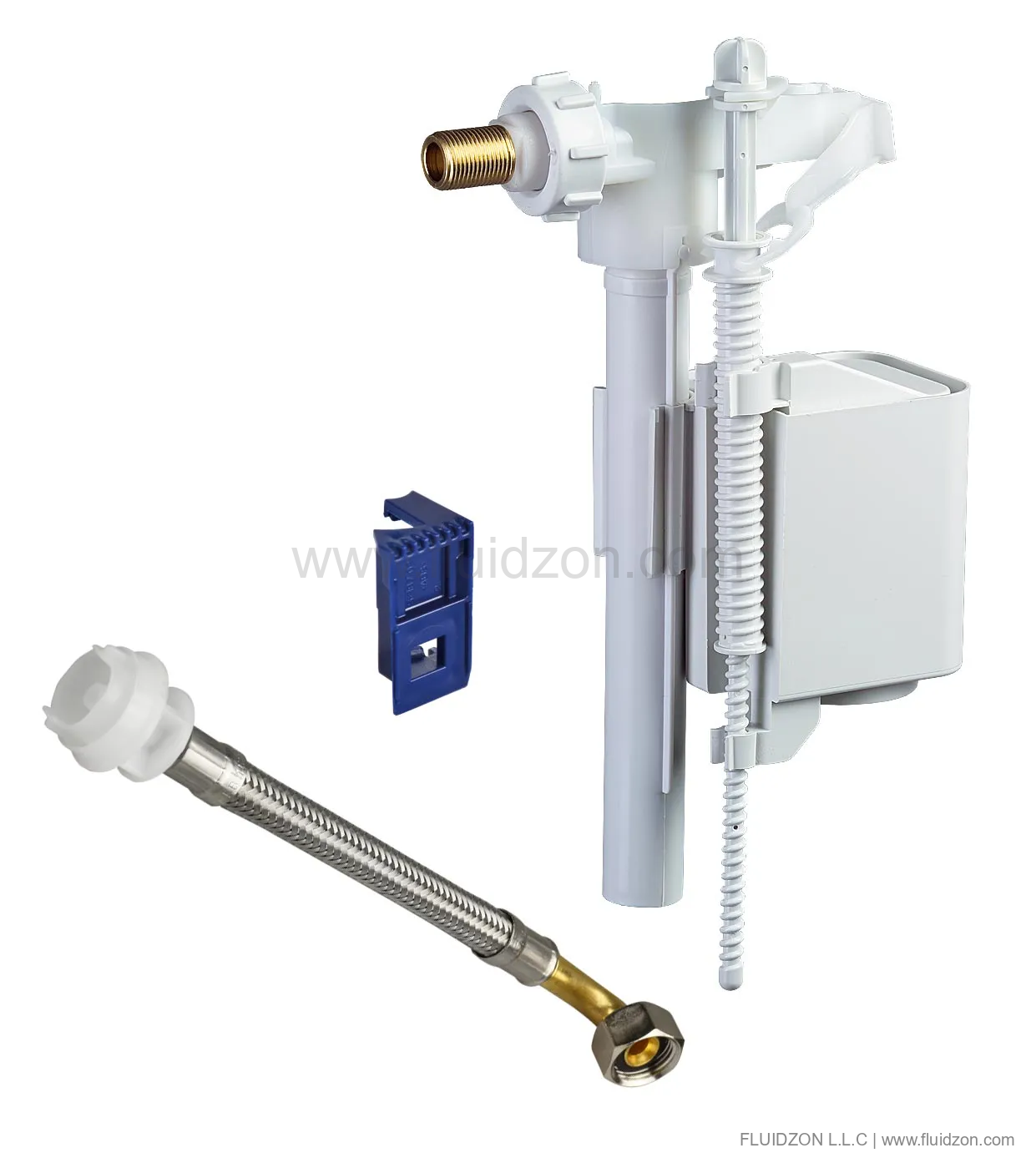

Fill valve 190, 192
675104

Schwab UP 192

Technical Documentation & Drawings

Browse the document library
Manufacturer model referenceRequest a specific drawing

Model support

Check the cause. Match the article.

These are inspection references from this model’s parts list, not a diagnosis or a guarantee that replacement is needed. Confirm the generation and drawing position.

Fill valve generation boundary

For installations from 2003–February 2014, Schwab’s conversion table maps the old 243292 fill valve to replacement set 675104. The later generation uses 628458; check the model drawing and connection before ordering. A loose valve is not automatically a substitute for the complete conversion set.

Confirm the existing thread, holder, tube and required fittings. Installations near the changeover date need the actual cistern label and mechanism checked.

Schwab conversion-table reference ↗

Water continues into the bowl

Check the outlet seal and valve seating, fill shut-off and plate adjustment before selecting a replacement.

Slow refill or valve noise

Check supply isolation, filter and fill valve condition. Match the connection thread and installation generation.

Button loose or not operating

Check the plate mechanism, rods and holders against the model drawing; plate design alone does not establish compatibility.

    Use the drawing and request identification before ordering.
