Schwab UP 380/XS

Original replacement articles, manufacturer drawing and matching technical documents. Confirm your model and installation generation before selecting a replacement.

Matching documents

Explore the assembly.

Select a position on the drawing, or find your article below.

24 listed components
Explore flush plate designs & finishes →

Pinch or scroll to zoom · Drag to pan

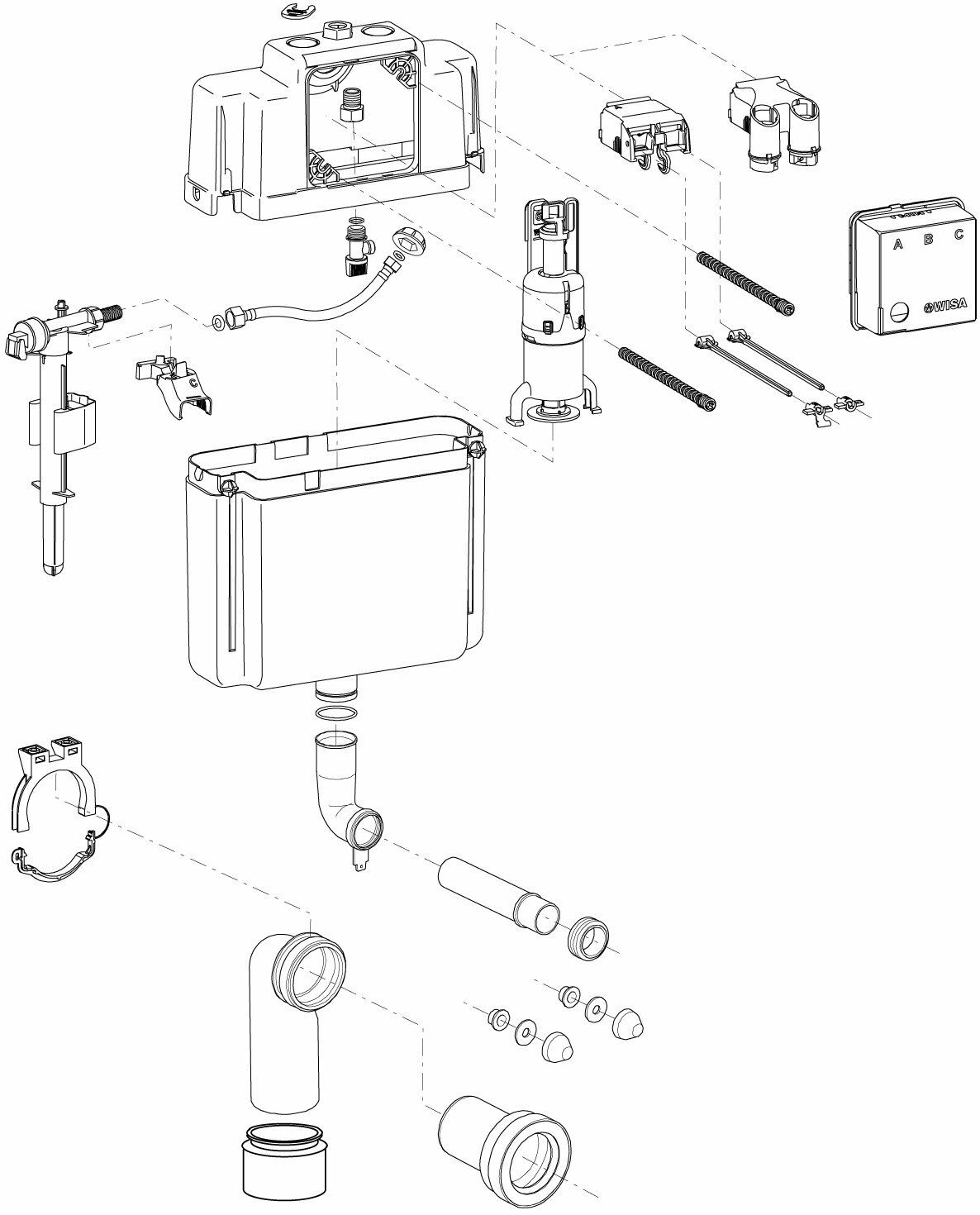

Schwab UP 380/XS manufacturer exploded parts diagram

Drawing positions

Schwab UP 380/XS / flush plates

Choose the design. Then the finish.

Match the plate mechanism and installation generation before ordering. Historical references do not establish current availability.

Component photo unavailableARTE, matt chrome, 4060415531

Original catalogue photo · limited resolution

2. Finish

4060415531
  • matt chrome
  • high quality plastic
  • start-stop
  • mechanical

ARTE · matt chrome

Dimensions
160 x 160 x 15 mm
Material
high quality plastic
Operation
start-stop
Mechanism
mechanical
EAN
8711778212992
Generation & required hardware

Year range not published in inspected compatibility sources; identify XS/380 mechanism (FI, DF, pneumatic or electronic).

Matching FI (start-stop) pins 8050390108 or DF/DUO pins 8050390109; mechanical clamp 8050390034 for XS/380. Exact product fixing parts supplied. XF/399 drawing p152 specifies DF pins 8050390109, bridge GR0891 and full/half-flush levers GR0889/GR0890. Do not use FI hardware in DF configuration.

Exact plate mechanism must match; no manufacturer plate revision/cutover date found.

Enquire about this plate ↗
Manufacturer compatibility reference ↗

Schwab UP 380/XS / replacement articles

Every part, in view.

24 of 24 components

1
Fill valve HVK G 3/8
8035432572
2

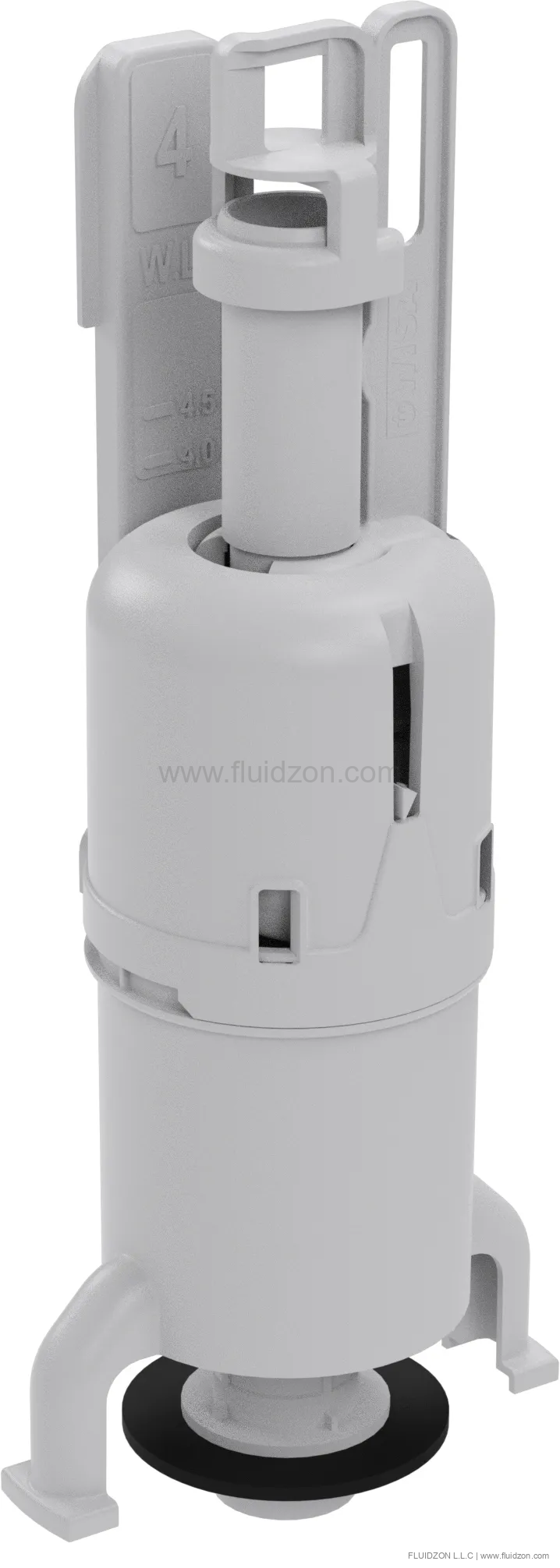

FLUSH VALVE, CISTERN 4/2 L
8050801527
3

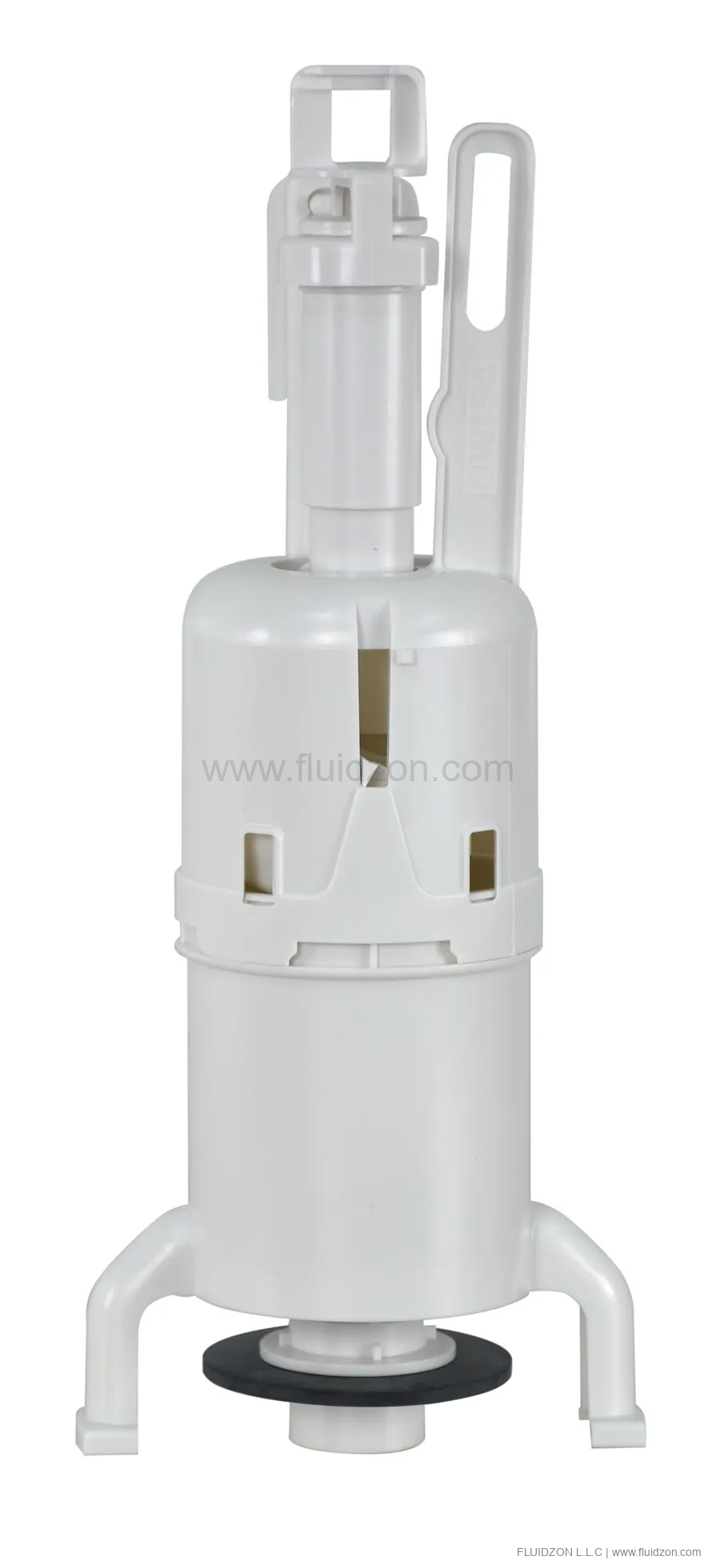

Flush valve with rubber seal
8050801525FM
4

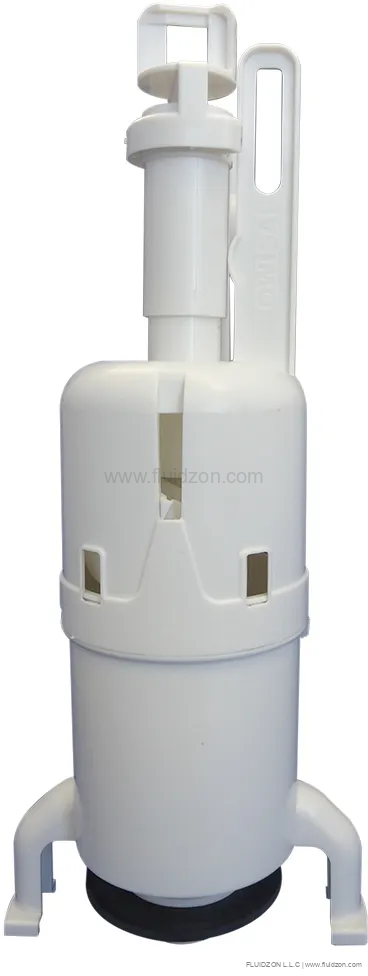

Flush valve (DFF)
8050801522
5
Flush valve rubber gasket 28 x 65 x 3 mm, black
1411988440
6
Bag of rubber gaskets for flush valve 28 x 65 x 3 (5 pc.)
8050390037
7

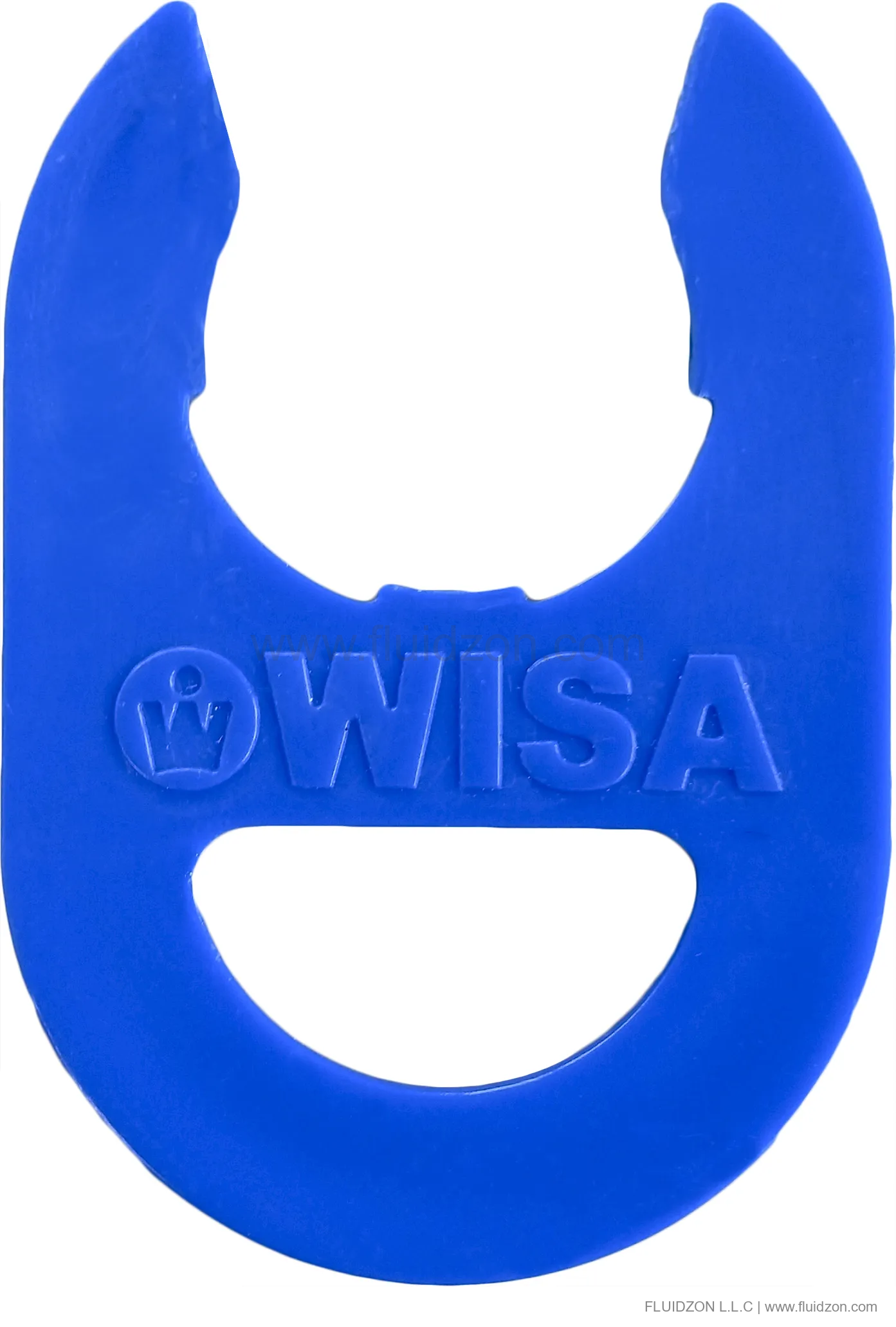

Tightening nut
8050887175
8

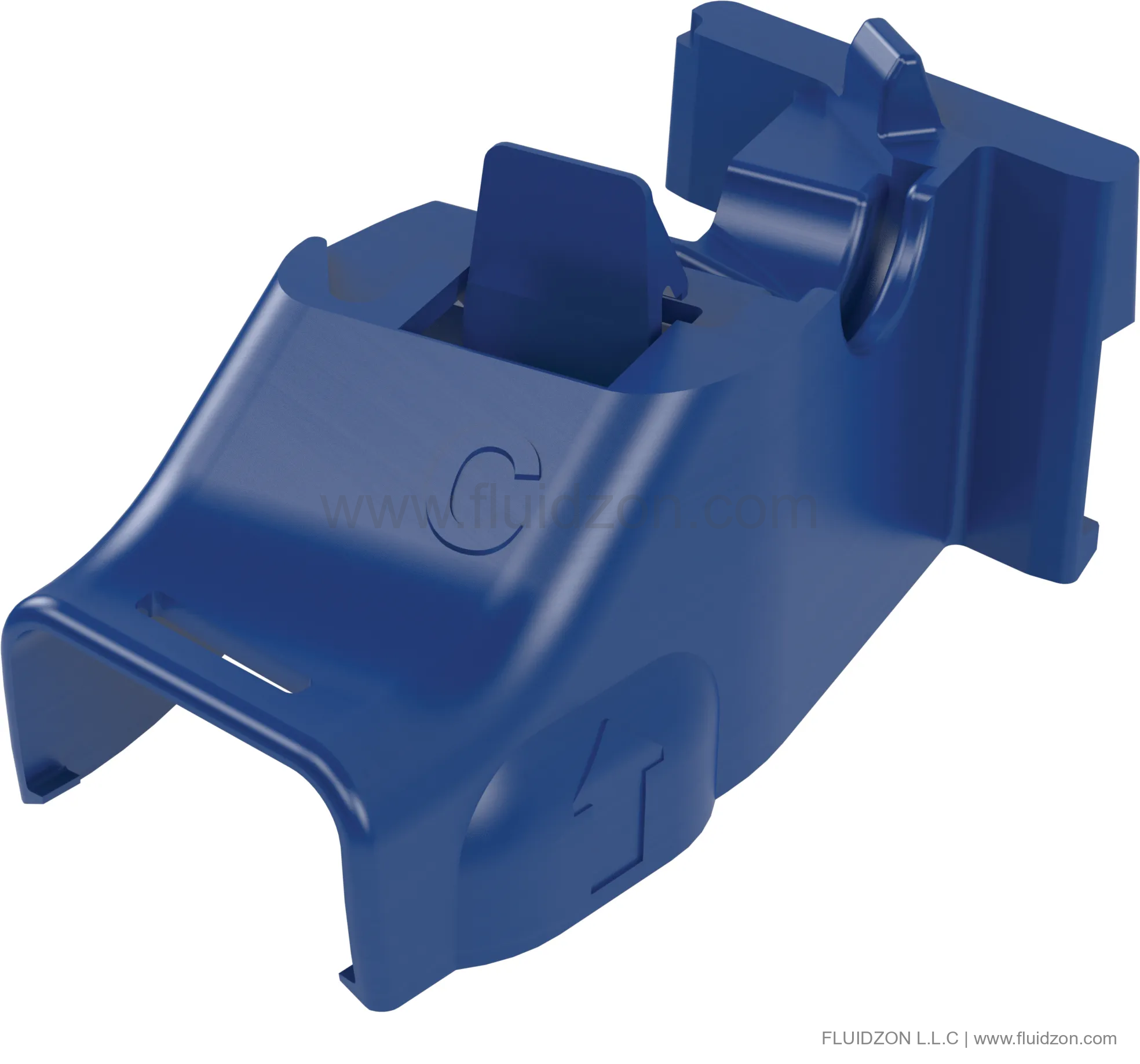

Bridge for fill valve
8050887079
9

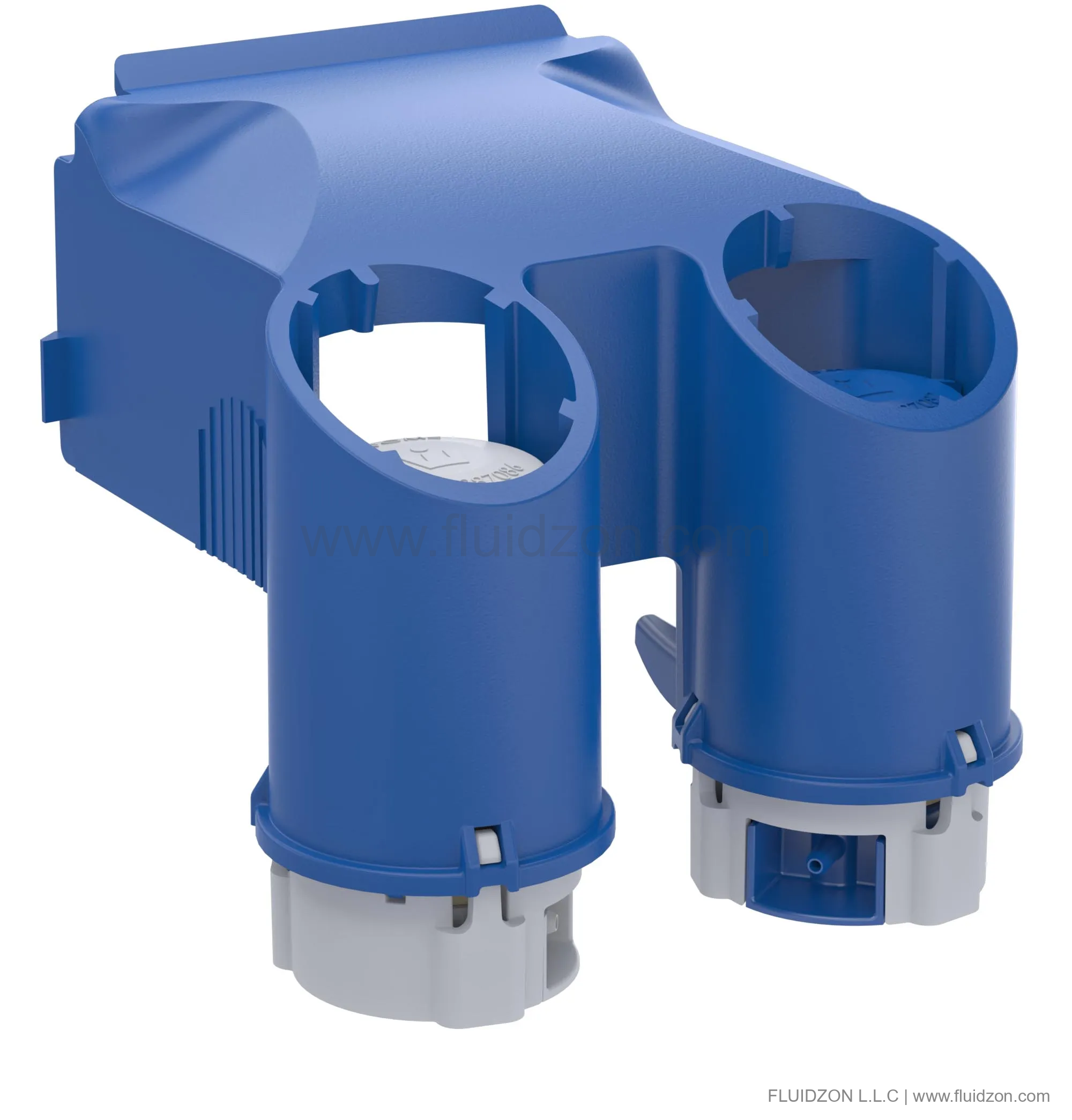

DFF clamp with control hooks
8050390052
10

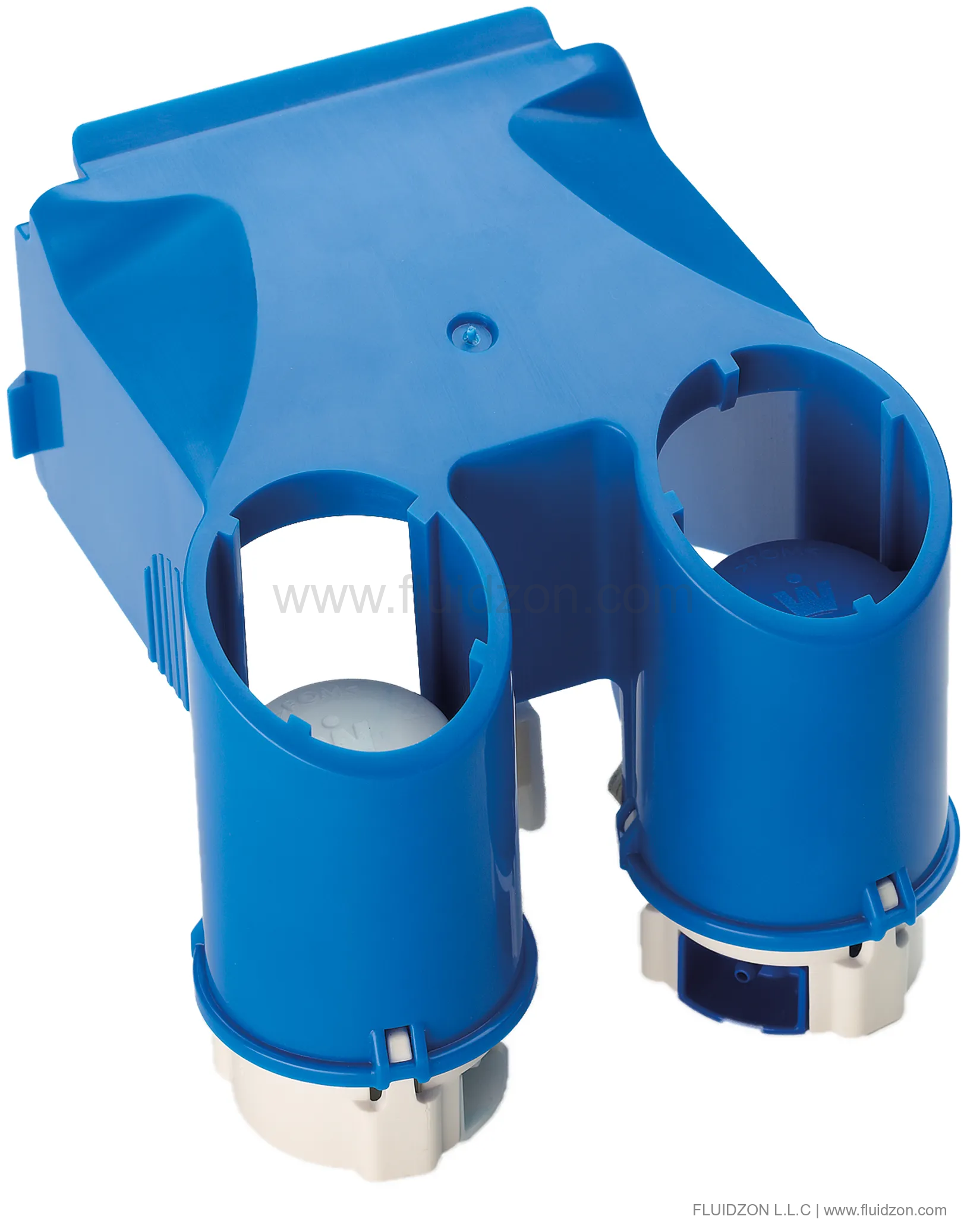

Clamp with control hooks, pneumatic
8050390032
11

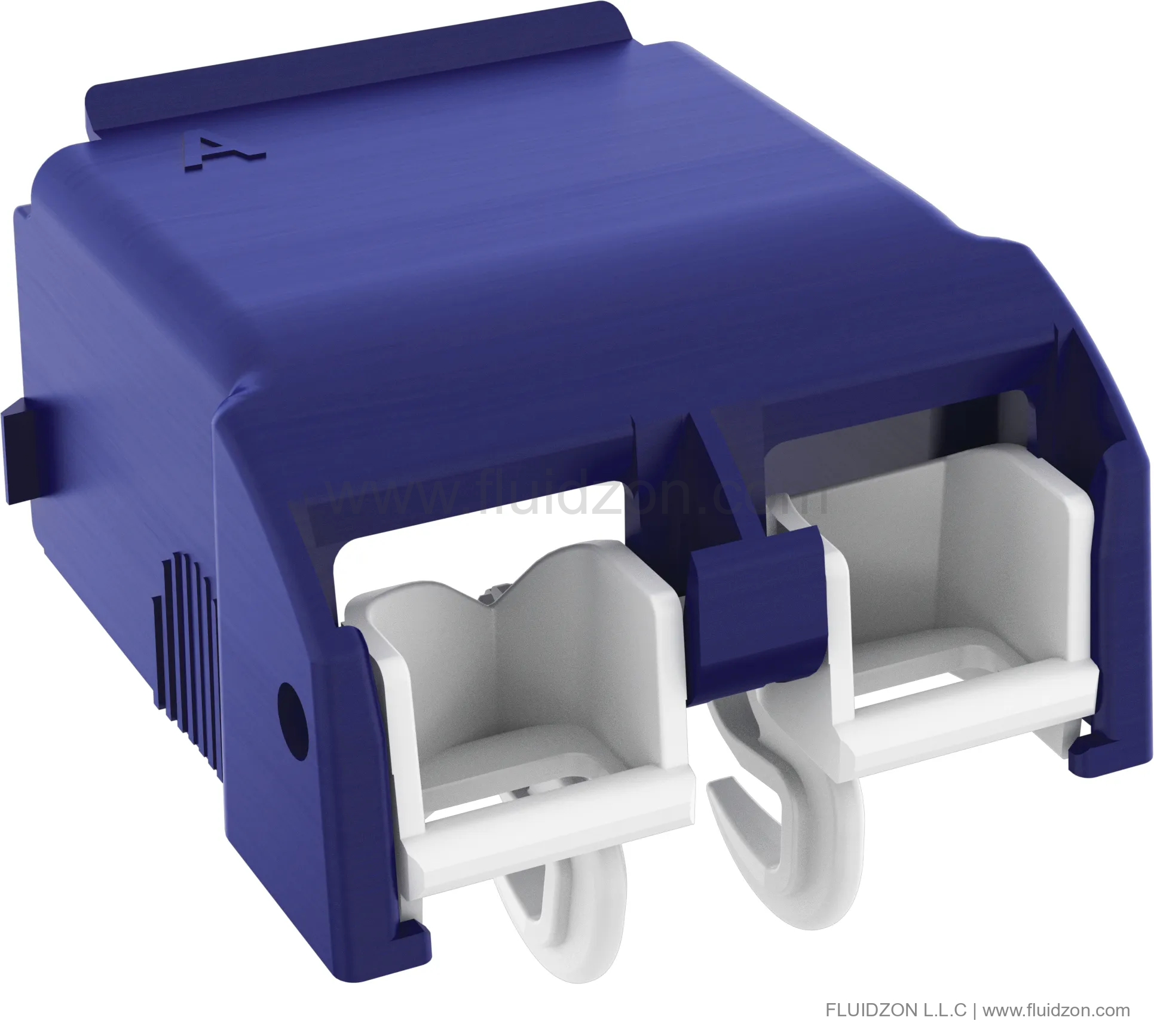

Clamp with control hooks, cisterns 3800/380, mechanical
8050390034
12

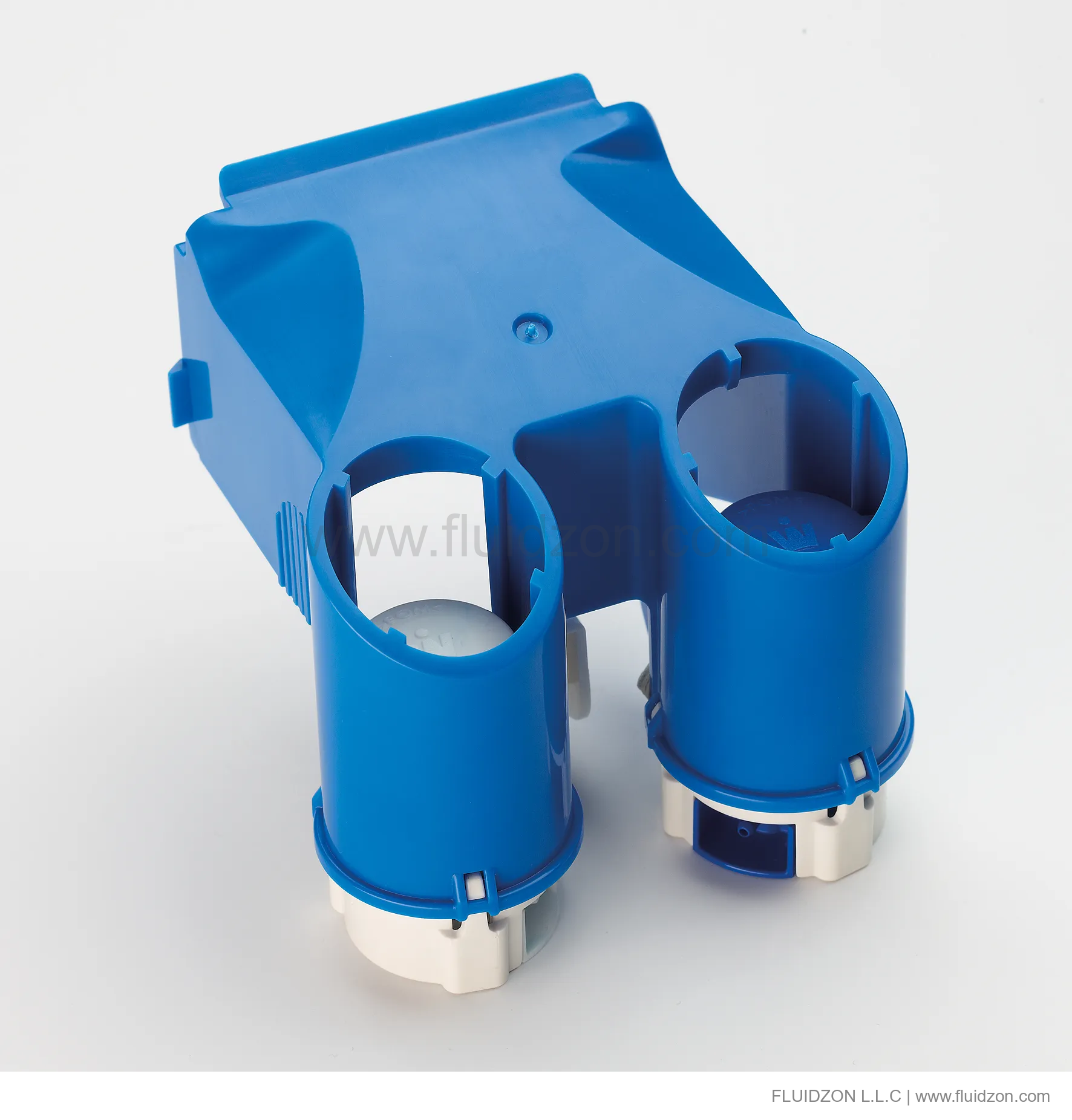

SF clamp with control hocks
8050390051
13

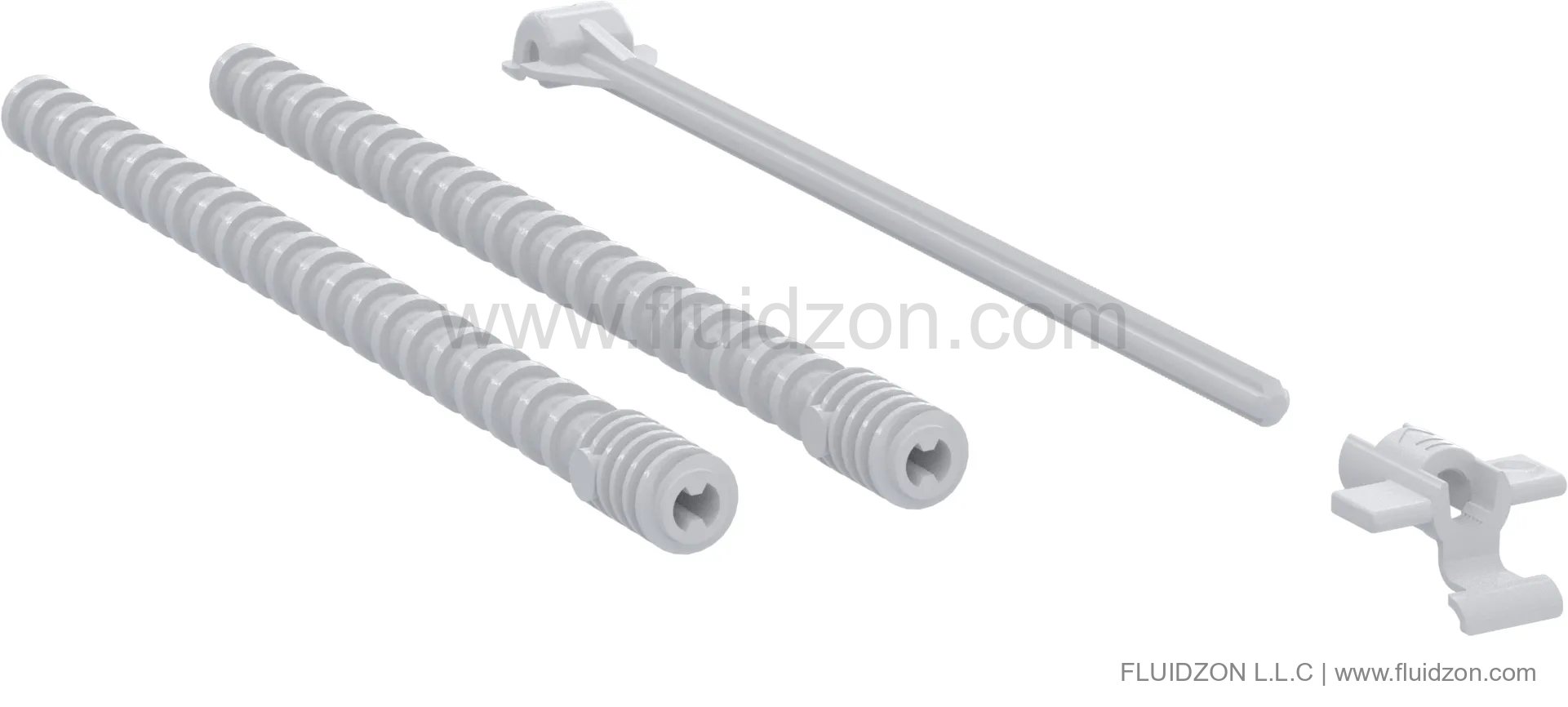

Set of fixation pins and control pins for XS, 380, 3800 FI plates
8050390108
14
Mounting and regulation pin set for DUO plates, cisterns 3800/380
8050390109
15
Clamp for mounting the drain elbow
8050887097
16
Inspection opening protection, front
8050887145
17
Set of rubber seals for 90 mm drain pipe and drain elbow
8050390061
18

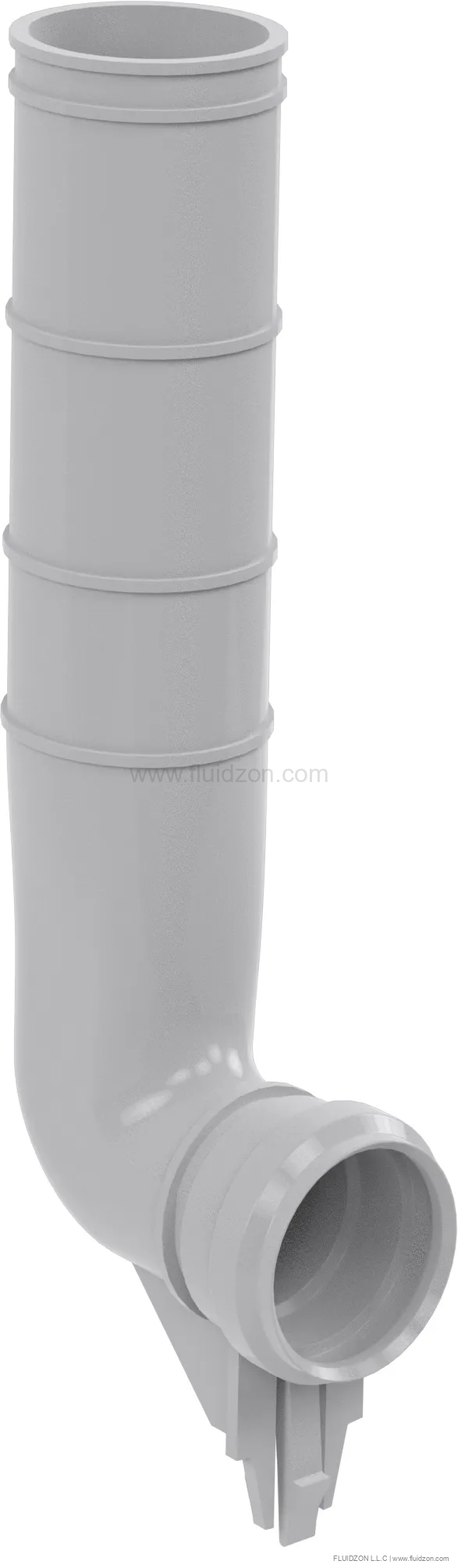

Flush pipe with tongue
8050887355
19

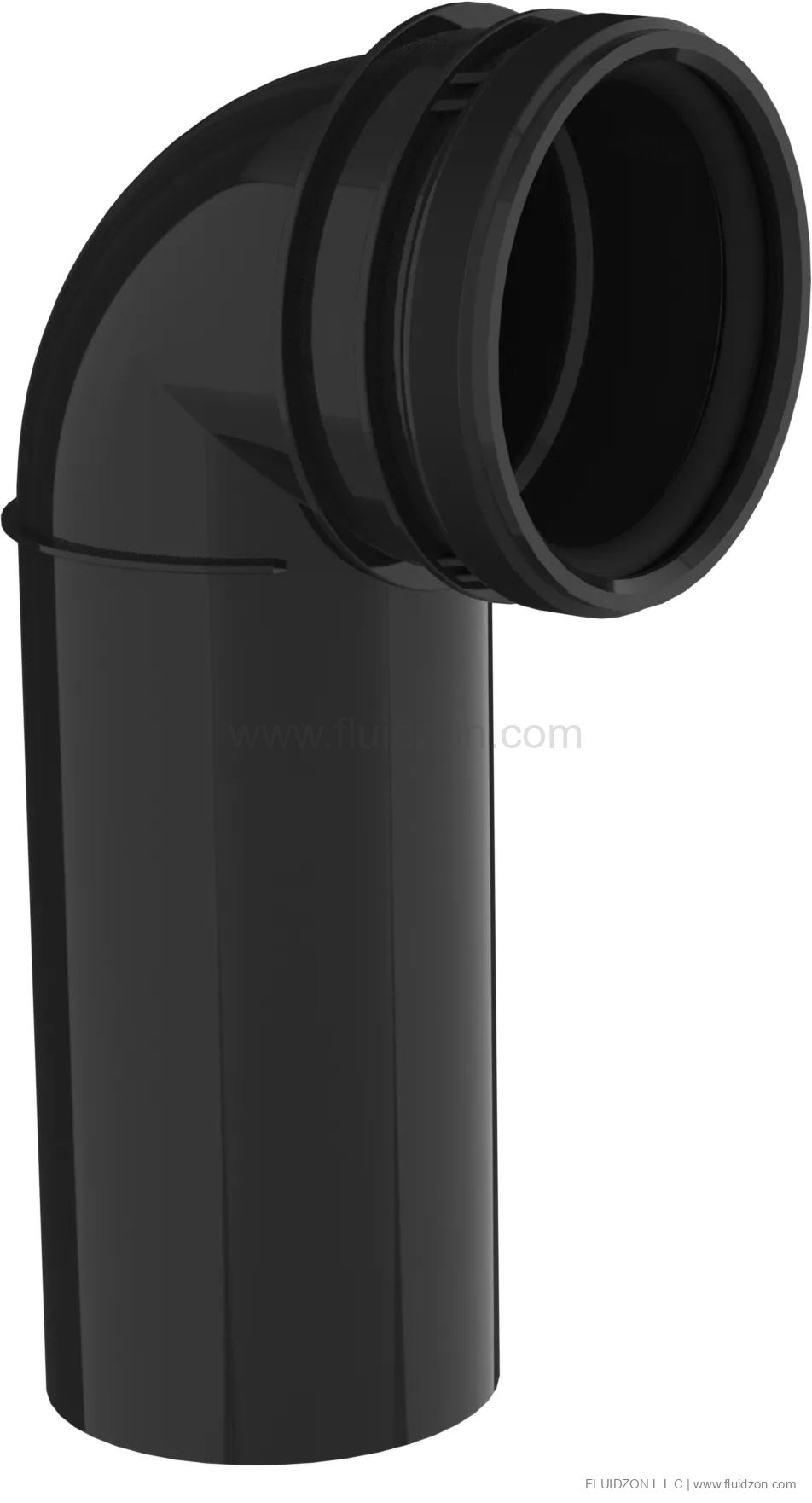

Discharge elbow Ø 90/90 mm
8050390090
20
Adapter reduction piece Ø 90/110 mm
8050390091
21
WC connection kit Ø 90 mm, L=230 mm
8050390080
22
Extra long WC connection kit Ø 90 mm, L=300 mm
8050390081
23

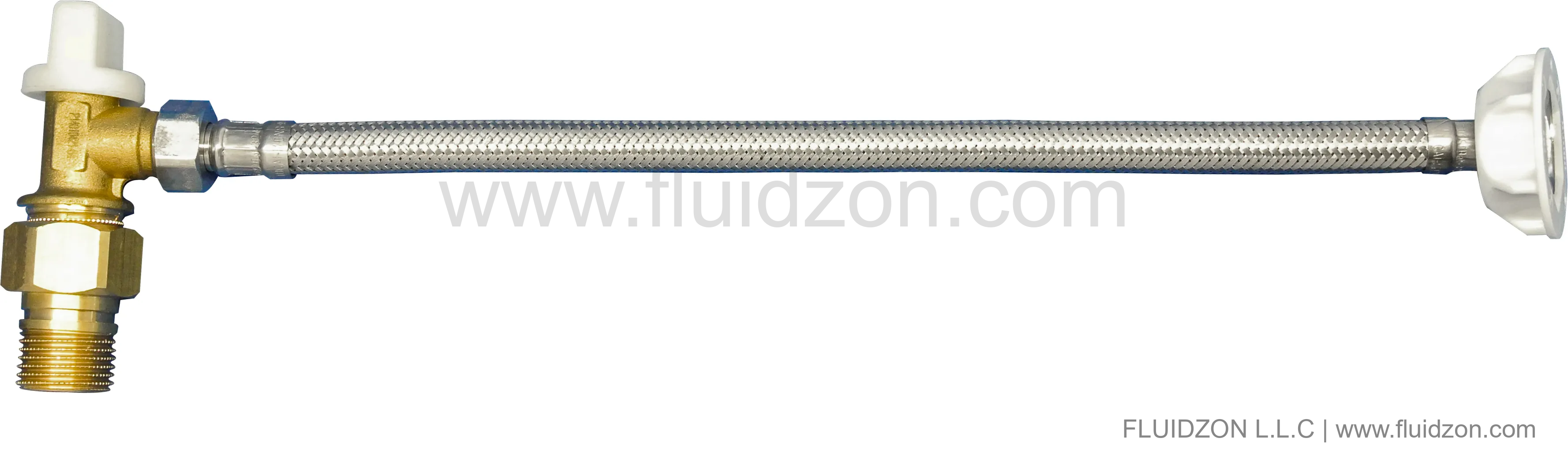

Flexible hose
8050802329
24

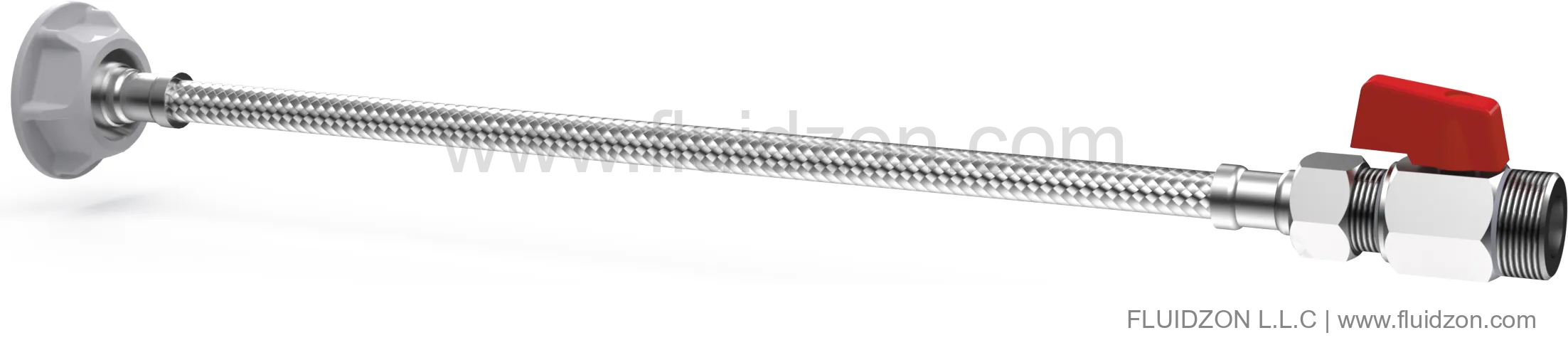

FLEXIBLE CONNECTION TUBE, G 1/2 INTERIOR
8050802326

Schwab UP 380/XS

Technical Documentation & Drawings

Browse the document library

Flushing plate ARTE DUO ALU, black — article 4060420138 dimension drawing

Dimension sheet · PDF · 20 KB

DownloadOpen in new tab

Schwab 380-xs — DUPLO frame dimension sheet

Dimension sheet · PDF · 36 KB

DownloadOpen in new tab

Schwab 380-xs — SET masonry assembly dimension sheet

Dimension sheet · PDF · 43 KB

DownloadOpen in new tab

Schwab 380/XS — Cross-Section & Detail Drawing

Dimension sheet · PDF · 36 KB

DownloadOpen in new tab

Schwab 380/XS — Overall Dimensions & Technical Drawing

Dimension sheet · PDF · 48 KB

DownloadOpen in new tab

Schwab 380/XS — Rough-In / Installation Dimensions

Dimension sheet · PDF · 43 KB

DownloadOpen in new tab

Schwab DUPLO WC 380 — article 4060452701 data sheet

Dimension sheet · PDF · 286 KB

DownloadOpen in new tab

WISA EOS VANDALISSIMO STEEL — Technical drawing

Dimension sheet · PDF · 22 KB

DownloadOpen in new tab
Manufacturer model referenceRequest a specific drawing

Model support

Check the cause. Match the article.

These are inspection references from this model’s parts list, not a diagnosis or a guarantee that replacement is needed. Confirm the generation and drawing position.

Water continues into the bowl

Check the outlet seal and valve seating, fill shut-off and plate adjustment before selecting a replacement.

Slow refill or valve noise

Check supply isolation, filter and fill valve condition. Match the connection thread and installation generation.

Button loose or not operating

Check the plate mechanism, rods and holders against the model drawing; plate design alone does not establish compatibility.
