Schwab AP220

Original replacement articles, manufacturer drawing and matching technical documents. Confirm your model and installation generation before selecting a replacement.

Matching documents

Explore the assembly.

Select a position on the drawing, or find your article below.

24 listed components

Pinch or scroll to zoom · Drag to pan

Schwab AP220 manufacturer exploded parts diagram

Drawing positions

Schwab AP220 / replacement articles

Every part, in view.

24 of 24 components

1
Angle valve G 1/2
1403987112
2

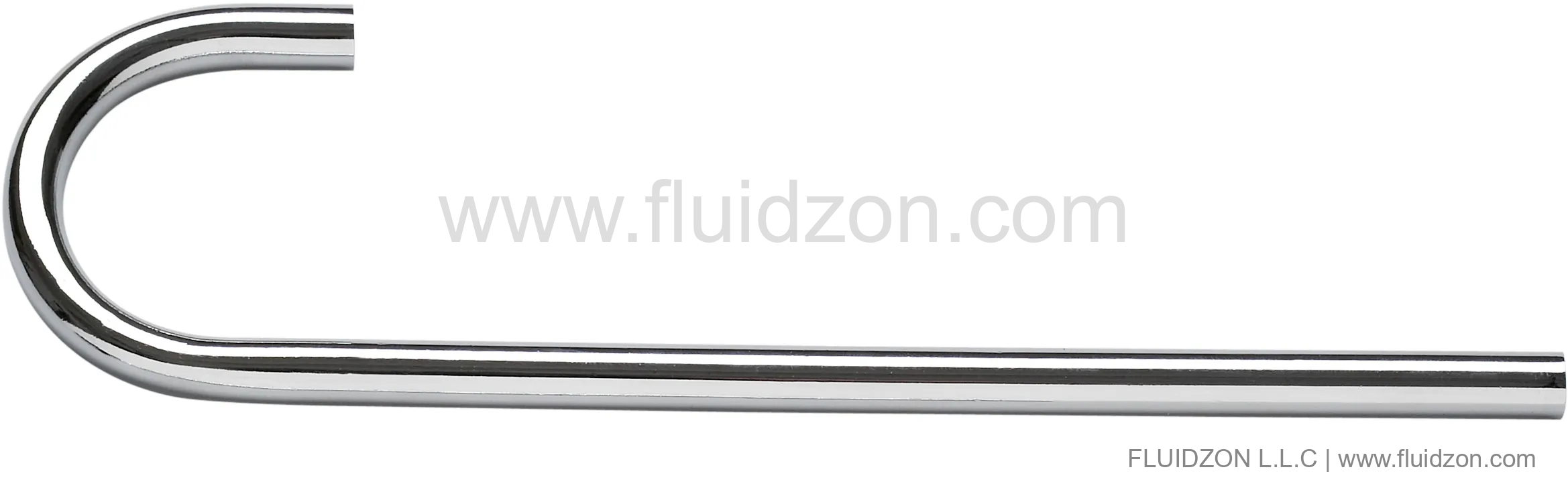

Copper connection pipe
1405987117
3
Bag of nuts for flush pipe white (5 pc.)
8050390002
4
Fill valve HVK G 3/8
8035432572
5
Bag of gaskets for flush pipe (5 pc.)
8050390025
6
Bag of decoration caps, white (5 pc.)
8050390067
7

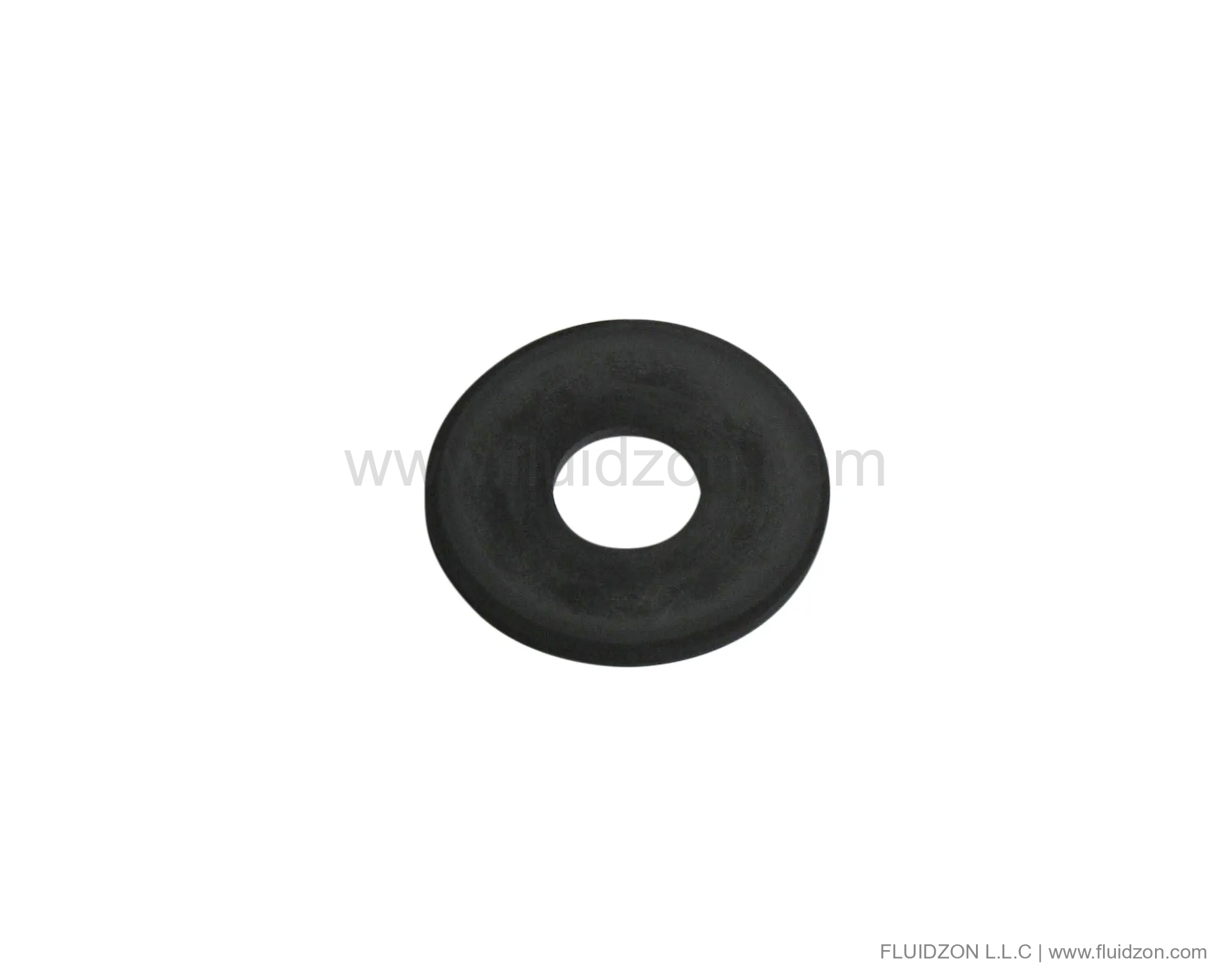

Flush valve rubber seal Ø 65 x 23,5 WISA 500/750 (old version till 07/1987)
1411988436
8
Flush valve rubber gasket 28 x 65 x 3 mm, black
1411988440
9

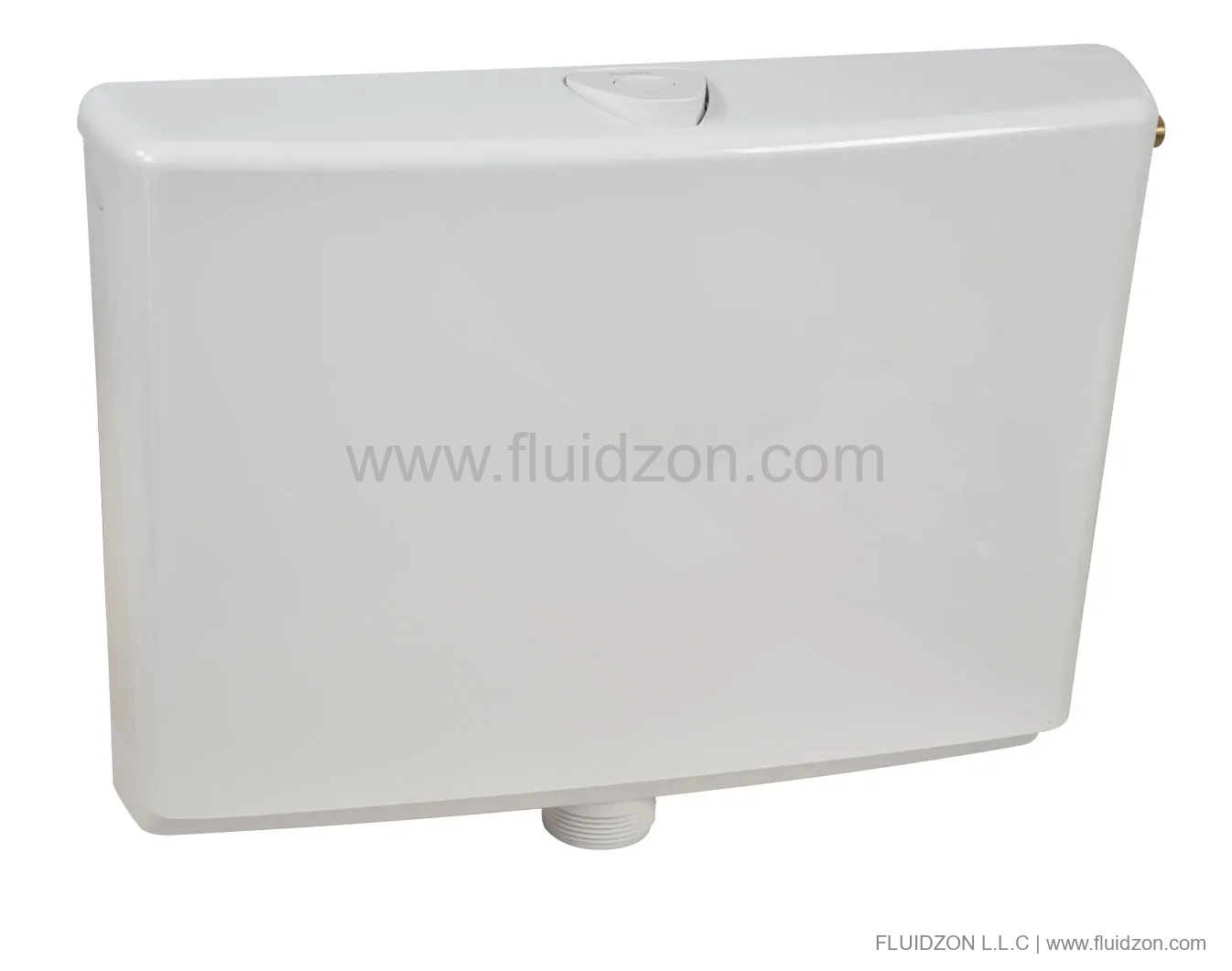

Cistern cover with function button, with flush interruption, white
8050411201
10
Bag of rubber gaskets for flush valve 28 x 65 x 3 (5 pc.)
8050390037
11

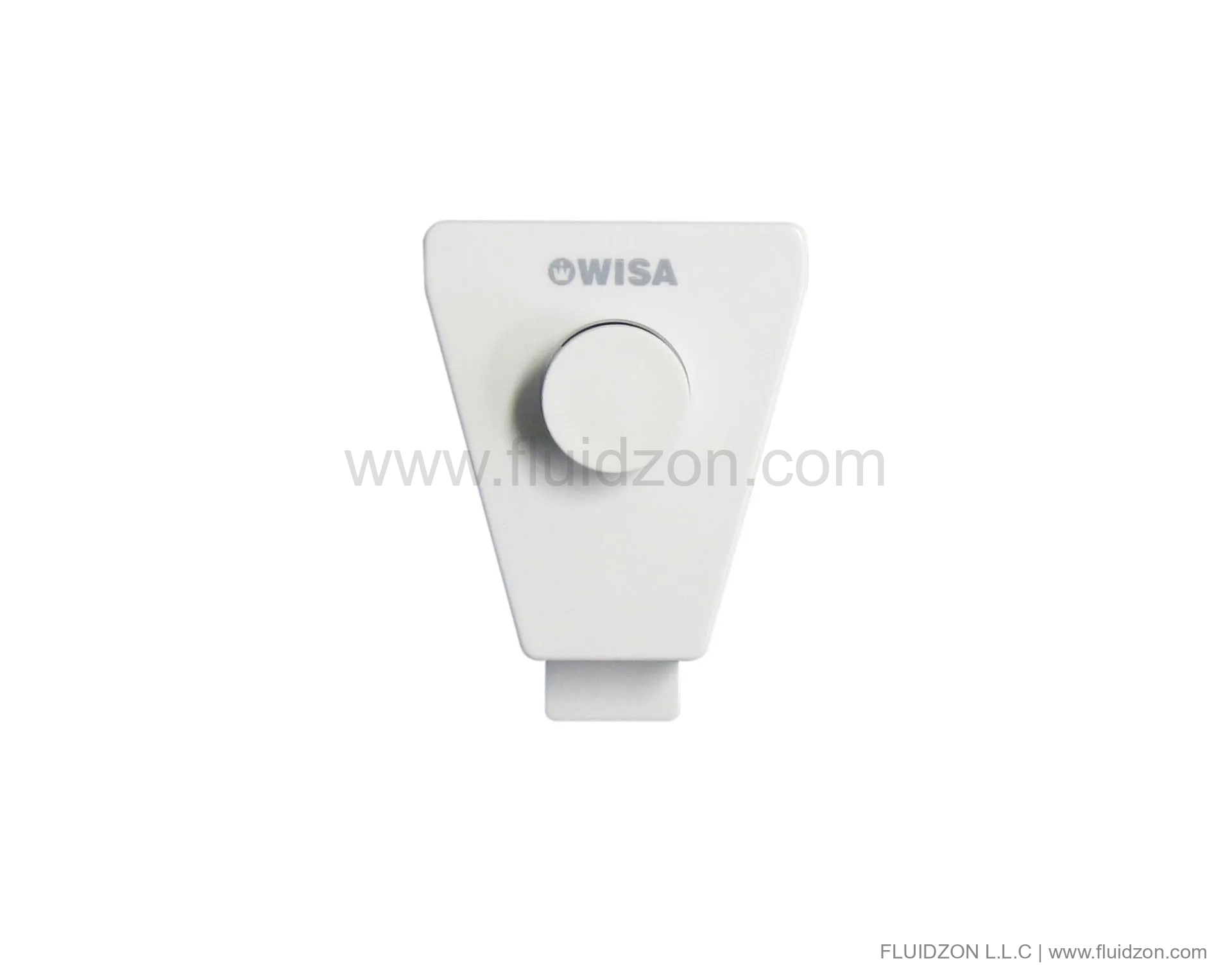

Function button with flush interruption, white (old model)
8050411901
12
Holder (screw and insert) with flush pipe gasket
8050800078
13

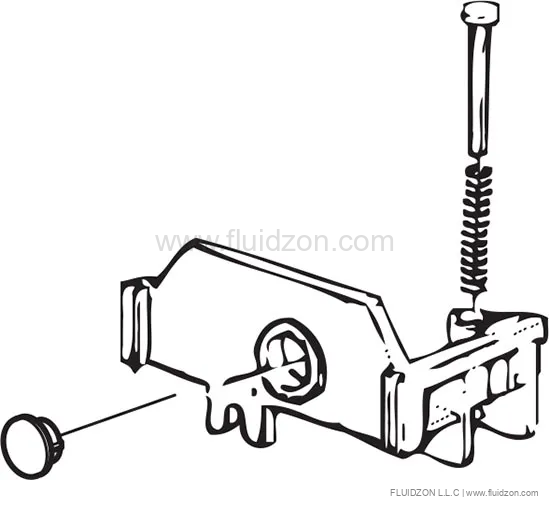

Bridge, cisterns Fortuna, AP220, SLIM, W500
8050800198
14

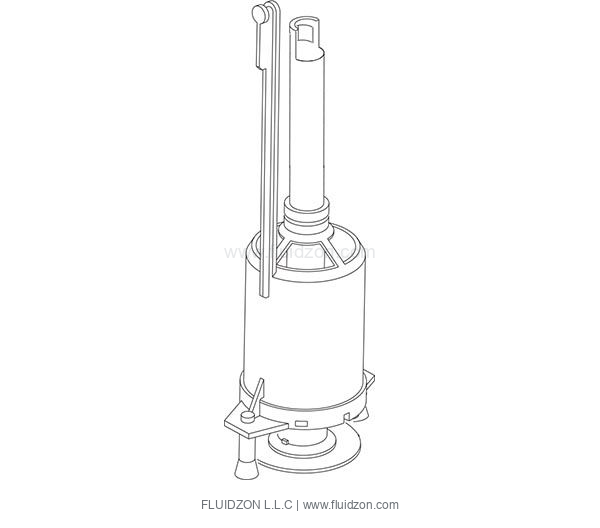

Flush valve with rubber gasket, cisterns Fortuna, W 500/750/790, AP 200
8050800504
15
Nut for flush pipe, manhattan
8050882224
16
Nut for flush pipe, pergamon
8050882227
17
Rosette, white
8050882382
18
Flush pipe rosette, white
8050882430
19
Nut for flush pipe, beige
8050882432
20
Flushing cistern outlet seal
8050882450
21
Closing cap, cistern Fortuna, Linea, W250/870/1250, AP210/AP260, white
8050882480
22
Closing cap, beige
8050882482
23

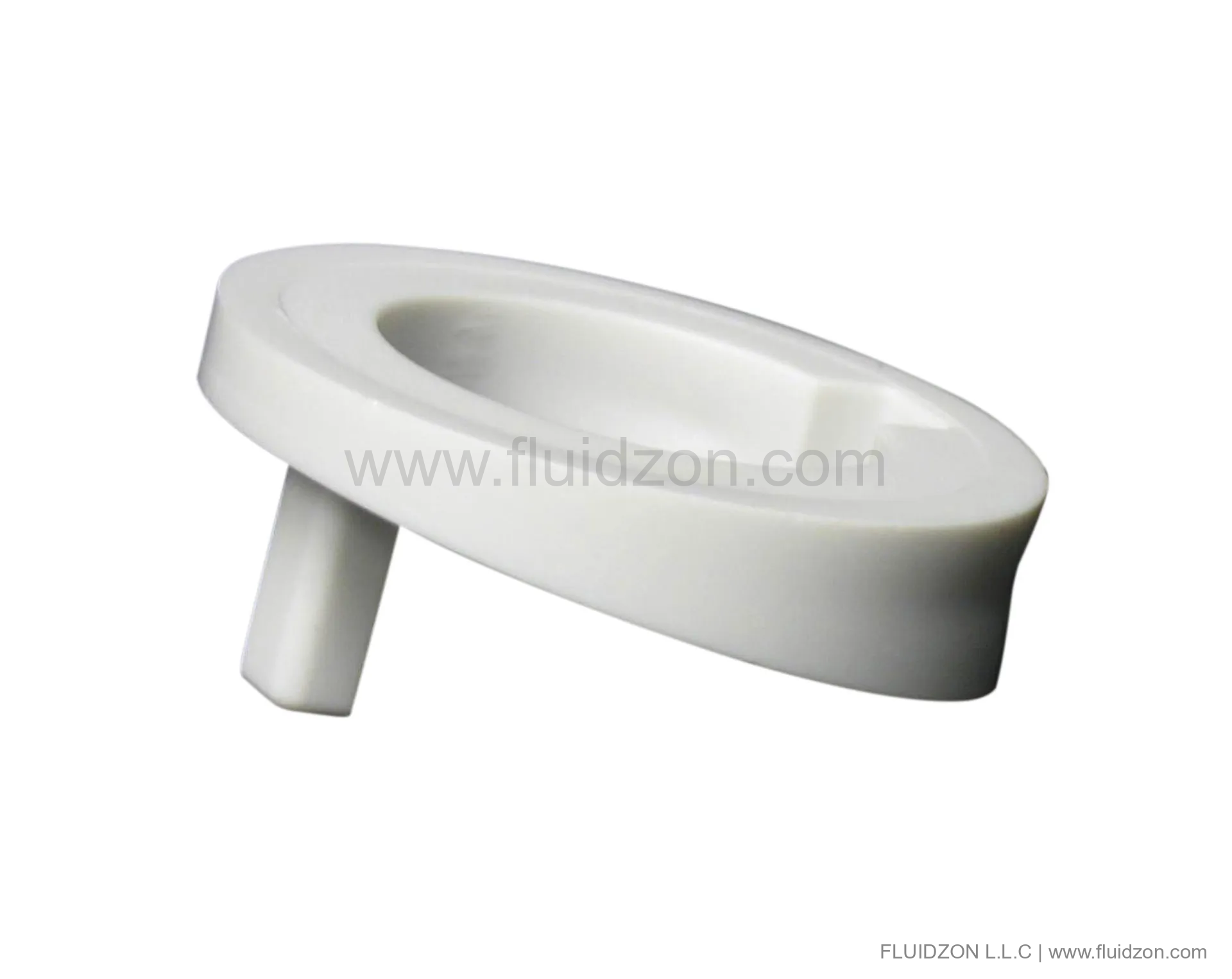

Spacer, white, cisterns W500, AP220, SLIM, Fortuna
8050882490
24

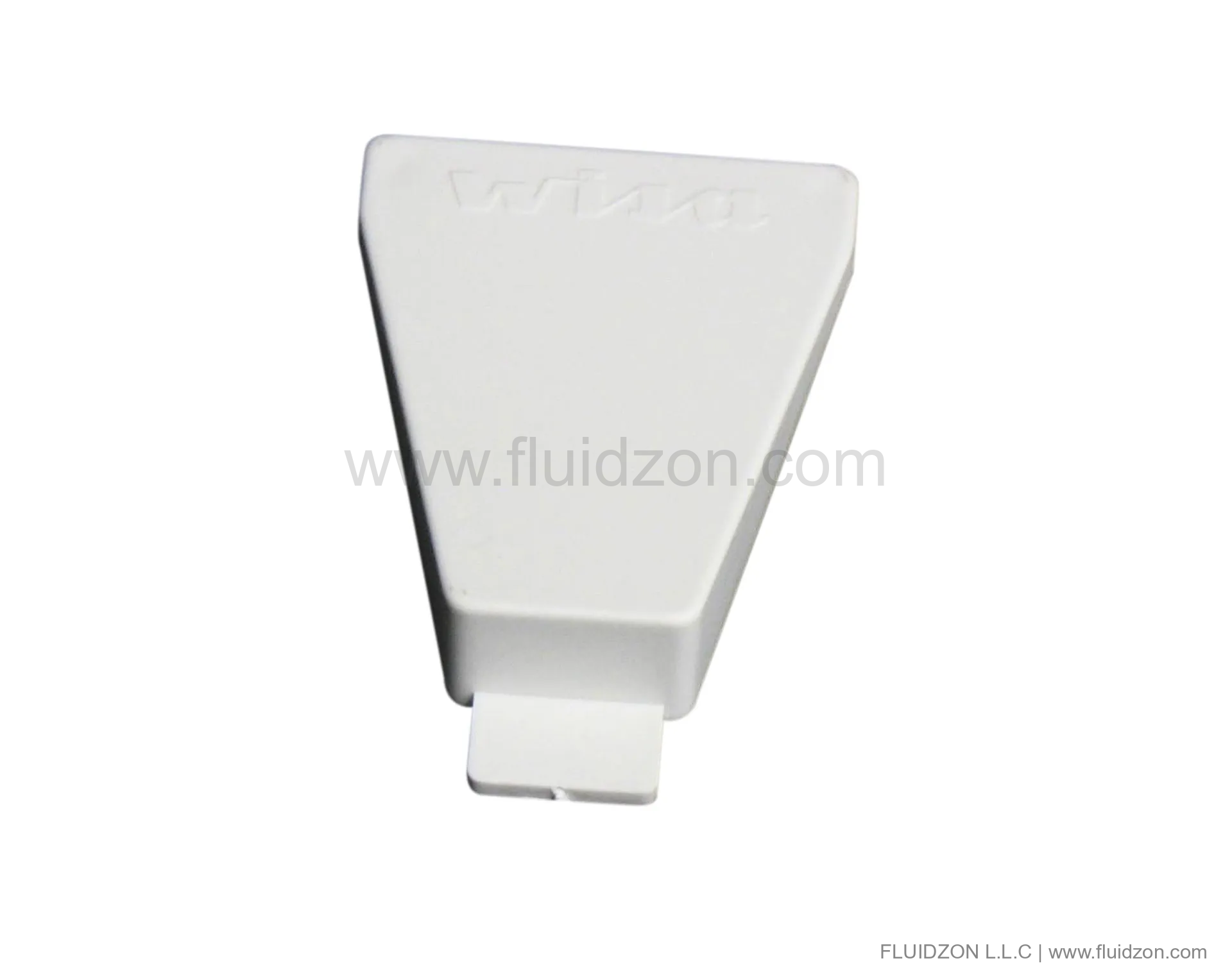

Function button, without start/stop function, white (old model)
8050885500

Schwab AP220

Technical Documentation & Drawings

Browse the document library
Manufacturer model referenceRequest a specific drawing

Model support

Check the cause. Match the article.

These are inspection references from this model’s parts list, not a diagnosis or a guarantee that replacement is needed. Confirm the generation and drawing position.

Water continues into the bowl

Check the outlet seal and valve seating, fill shut-off and plate adjustment before selecting a replacement.

Slow refill or valve noise

Check supply isolation, filter and fill valve condition. Match the connection thread and installation generation.

Button loose or not operating

Check the plate mechanism, rods and holders against the model drawing; plate design alone does not establish compatibility.
